Adjustable synchronous buck regulator IC, featuring a 2.5A maximum output current and 14.5V maximum output voltage. Operates with input voltages from 4.5V to 15V, delivering a minimum output voltage of 600mV. This power management IC is housed in a compact 4mm x 4mm x 0.7mm QFN EP package, suitable for operation across a wide temperature range of -40°C to 125°C.
PackageQFN EP
Quick Jump:
Technical Specifications
Analog Devices LTC3603EUF#PBF technical specifications.
General
Package/Case
QFN EP
Height
0.7mm
Length
4mm
Max Input Voltage
15V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
2.5A
Max Output Voltage
14.5V
Min Output Voltage
600mV
Number of Outputs
1
Output Current
2.5A
Output Type
Adjustable
Output Voltage
14.85V
Package Quantity
91
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3603EUF#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3603EUF#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

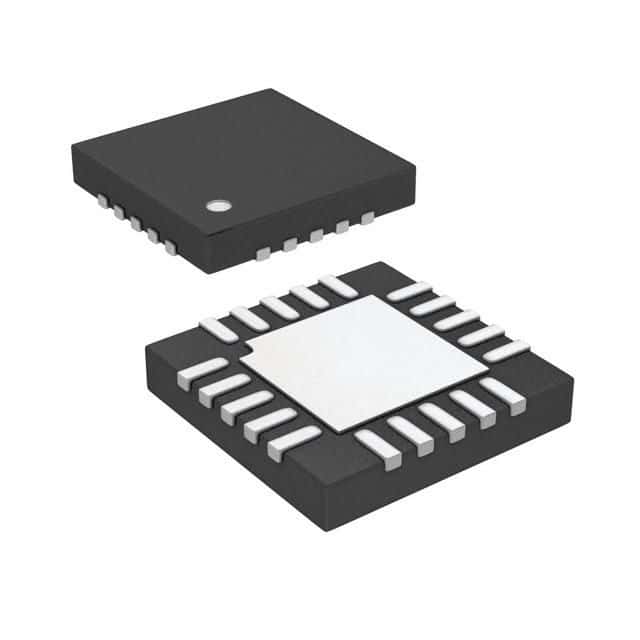

Product Images
