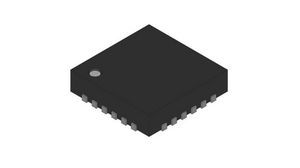

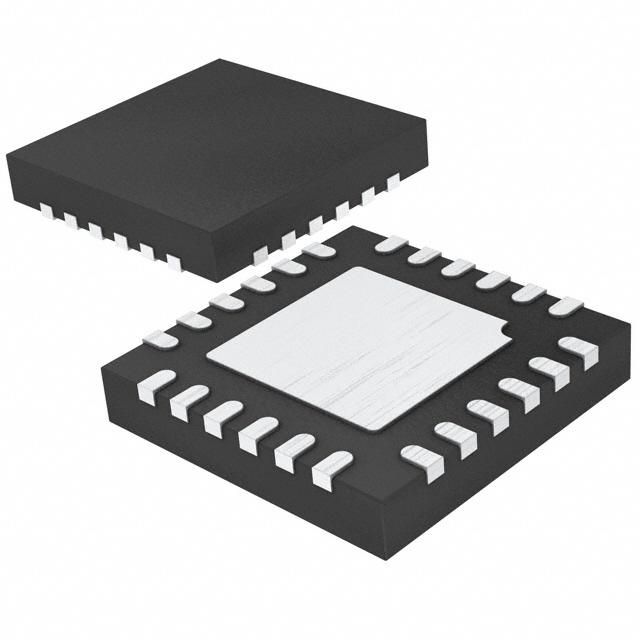

Adjustable synchronous buck DC/DC controller IC with 5A output current capability. Features a wide input voltage range of 4V to 15V and an adjustable output voltage from 600mV up to 15V. Achieves up to 96% efficiency and operates within a -40°C to 85°C temperature range. Packaged in a compact 4mm x 4mm x 0.7mm QFN, this RoHS compliant component is ideal for power management applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices LTC3605EUF#PBF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices LTC3605EUF#PBF technical specifications.
| Package/Case | QFN |
| Efficiency | 96% |
| Height | 0.7mm |
| Length | 4mm |
| Max Input Voltage | 15V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5A |
| Max Output Voltage | 15V |
| Min Output Voltage | 600mV |
| Number of Outputs | 1 |
| Output Current | 5A |
| Output Type | Adjustable, Fixed |
| Output Voltage | 14.9V |
| Package Quantity | 91 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Width | 4mm |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices LTC3605EUF#PBF to view detailed technical specifications.
