Adjustable 10A DC/DC buck regulator IC featuring a 4.5V to 32V input voltage range and a 0.6V to 32V adjustable output voltage. This surface mountable, single-output power management IC operates efficiently with a synchronous rectifier and is housed in a 64-pin QFN package. It offers a wide operating temperature range from -40°C to 125°C and is RoHS compliant.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC3611IWP#PBF technical specifications.
General
Package/Case
QFN
Lead Free
Lead Free
Max Input Voltage
32V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
32V
Min Output Voltage
600mV
Mount
Surface Mount
Number of Outputs
1
Output Current
10A
Output Type
Adjustable
Output Voltage
32V
Package Quantity
40
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3611IWP#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3611IWP#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

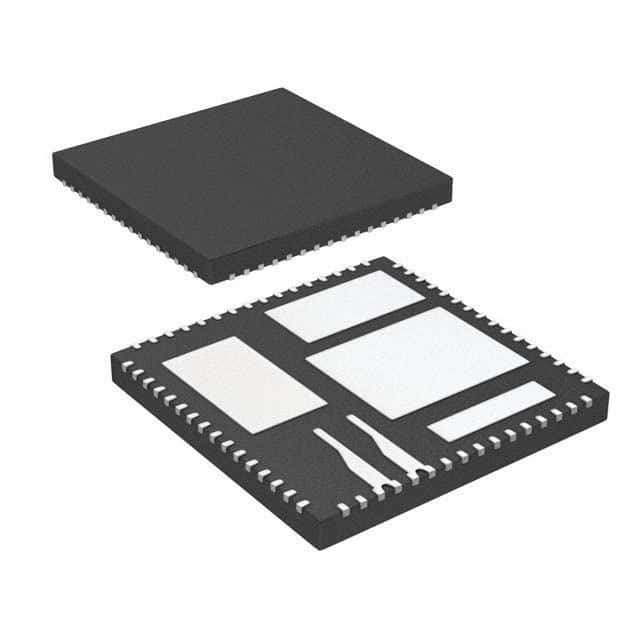

Product Images
