Dual 3A synchronous buck DC/DC controller IC, featuring adjustable output voltage down to 600mV and up to 5.5V per output. Operates with input voltages from 2.25V to 5.5V, offering three outputs with a maximum output current of 3A for two channels. Housed in a 24-pin TSSOP package, this RoHS compliant component functions across a wide temperature range of -40°C to 125°C.
PackageTSSOP
Quick Jump:
Technical Specifications
Analog Devices LTC3618EFE#PBF technical specifications.
General
Package/Case
TSSOP
Current - Output 1
3A
Current - Output 2
3A
Lead Free
Lead Free
Min Input Voltage
2.25V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Number of Outputs
3
Output Voltage
600mV
Package Quantity
62
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Voltage - Output 1
5.5V
Voltage - Output 2
5.5V
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3618EFE#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3618EFE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

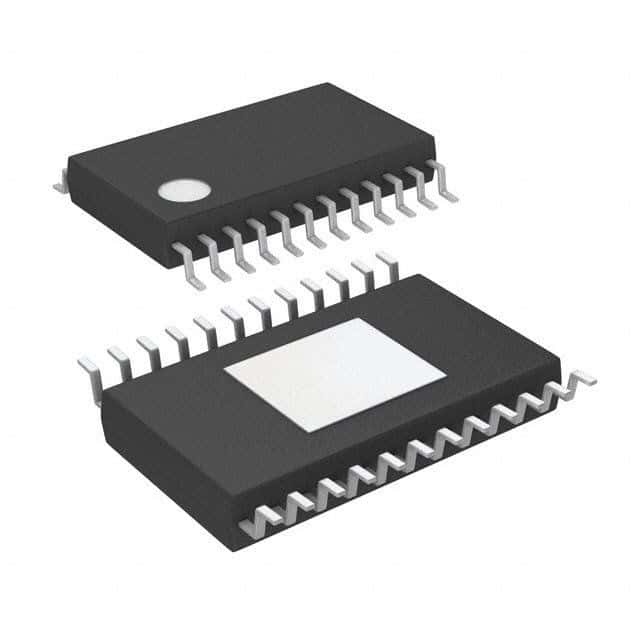

Product Images
