Synchronous buck DC/DC controller with adjustable output voltage from 800mV to 65V. Features a maximum input voltage of 65V and a maximum output current of 500mA. Operates across a wide temperature range of -40°C to 125°C. Single output configuration.
Quick Jump:
Technical Specifications
Analog Devices LTC3630EMSE#PBF technical specifications.
General
| Max Input Voltage | 65V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 65V |
| Min Output Voltage | 800mV |
| Number of Outputs | 1 |
| Output Current | 500mA |
| Output Type | Adjustable |
| Output Voltage | 65V |
| Package Quantity | 37 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3630EMSE#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3630EMSE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

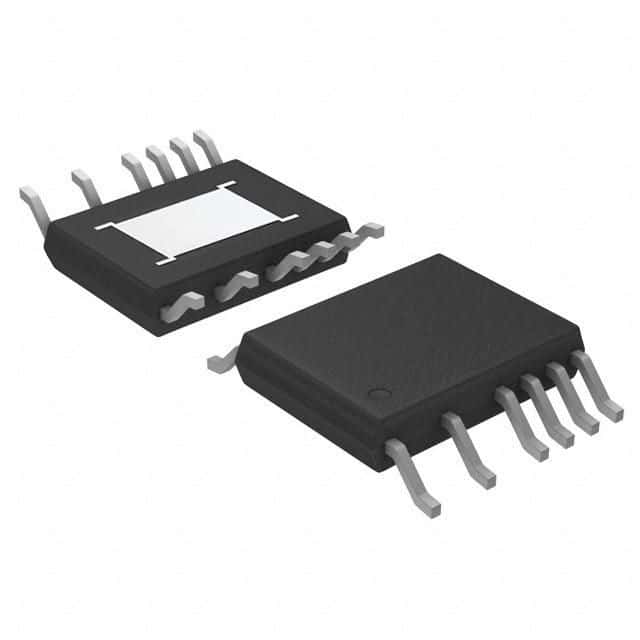

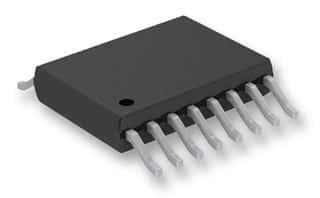

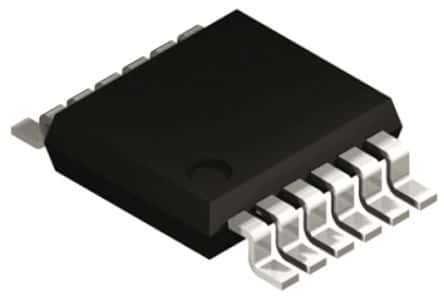

Product Images
