Synchronous buck-boost DC/DC controller IC featuring adjustable output voltage up to 65V and 500mA output current. This power management IC offers a single output and operates within a -40°C to 125°C temperature range. The component is housed in a 16-lead MSOP package, supplied on tape and reel, and is RoHS compliant and lead-free.
PackageSOP
Quick Jump:
Technical Specifications
Analog Devices LTC3630EMSE#TRPBF technical specifications.
General
Package/Case
SOP
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Number of Outputs
1
Output Current
500mA
Output Type
Adjustable
Output Voltage
65V
Package Quantity
2500
Packaging
Tape and Reel
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3630EMSE#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC3630EMSE#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

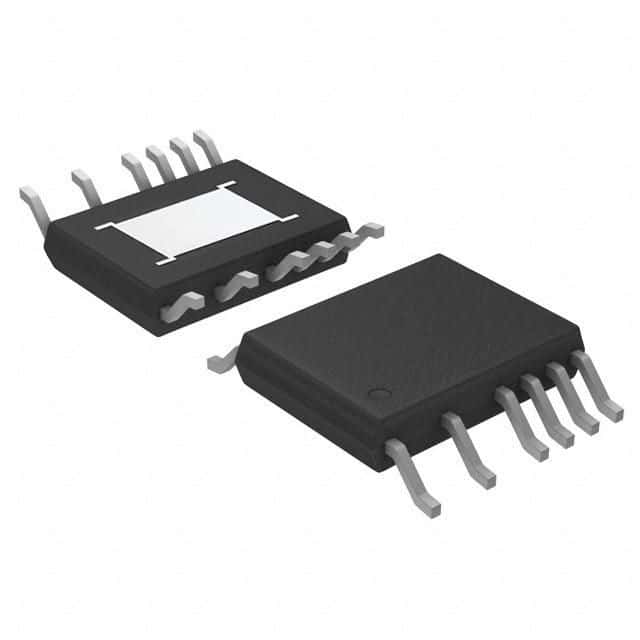

Product Images
