Dual-output DC/DC converter IC featuring adjustable output voltage up to 6V and 3A continuous output current per channel. This power management IC operates from a 3.6V to 20V input voltage range and incorporates a synchronous rectifier for enhanced efficiency. Designed for high-temperature applications, it functions across a -40°C to 125°C operating temperature range and is available in a QFN package.
PackageQFN
Quick Jump:
Technical Specifications
Analog Devices LTC3633AIUFD#PBF technical specifications.
General
Package/Case
QFN
Current - Output 1
3A
Current - Output 2
3A
Lead Free
Lead Free
Max Input Voltage
20V
Min Input Voltage
3.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Number of Outputs
2
Output Current
3A
Output Type
Adjustable
Output Voltage
6V
Package Quantity
73
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Voltage - Output 1
6V
Voltage - Output 2
6V
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3633AIUFD#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3633AIUFD#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

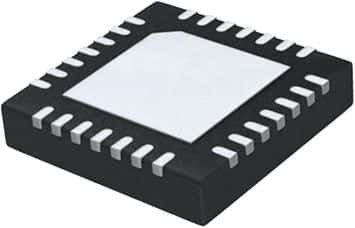

Product Images
