Adjustable positive output DC/DC buck controller, capable of 1A output current. Features a wide input voltage range from 4V to 76V, with an adjustable output voltage up to 76V and a minimum of 800mV. Operates efficiently across a temperature range of -40°C to 125°C. This surface mount component is supplied in a 16-MSOP package.
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC3637IMSE#PBF technical specifications.
General
Max Input Voltage
76V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
76V
Min Output Voltage
800mV
Mount
Surface Mount
Number of Outputs
1
Output Configuration
Positive
Output Current
1A
Output Type
Adjustable
Output Voltage
76V
Package Quantity
37
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3637IMSE#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3637IMSE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

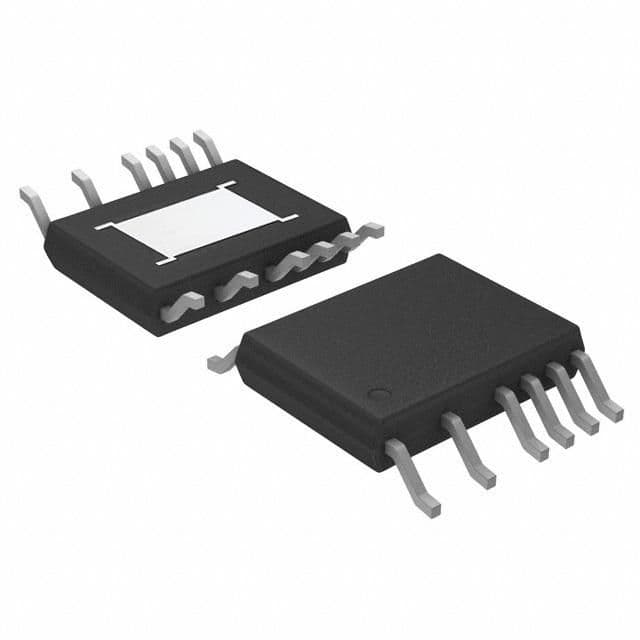

Product Images
