Adjustable positive output DC/DC buck controller with synchronous rectification, capable of delivering up to 100mA output current. Features a wide input voltage range from 4V and an adjustable output voltage from 800mV up to 150V. Operates efficiently across a broad temperature range of -40°C to 125°C. Packaged in a 16-lead MSOP, this RoHS compliant component is supplied in a rail/tube format.
PackageSOP
Quick Jump:
Technical Specifications
Analog Devices LTC3639EMSE#PBF technical specifications.
General
| Package/Case | SOP |
| Min Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 150V |
| Min Output Voltage | 800mV |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 100mA |
| Output Type | Adjustable |
| Output Voltage | 150V |
| Package Quantity | 37 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3639EMSE#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3639EMSE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

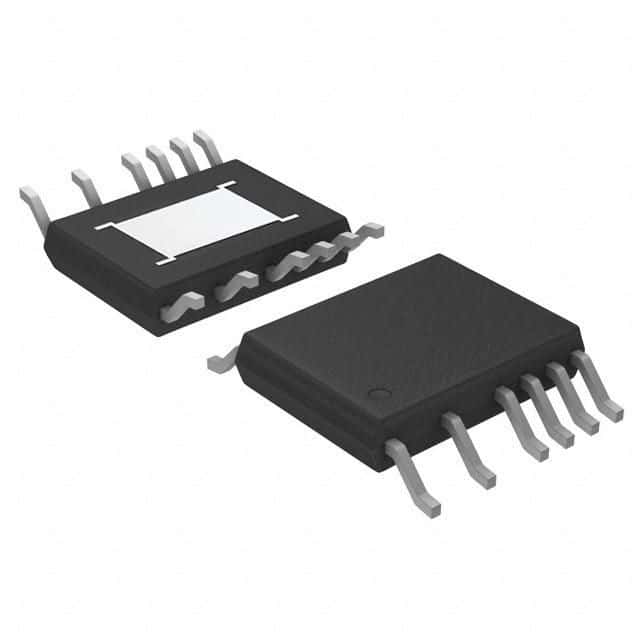

Product Images
