The LTC3703EGN is a DC/DC controller with a single output capable of delivering 10A at 93V. It operates at a maximum frequency of 330kHz and is packaged in a SSOP package. The device is rated for operation between -40°C and 85°C. Note that this product contains lead and is not RoHS compliant.
Frequency330kHz
PackageSSOP
Quick Jump:
Technical Specifications
Analog Devices LTC3703EGN technical specifications.
General
| Package/Case | SSOP |
| Duty Cycle | 96% |
| Lead Free | Contains Lead |
| Max Frequency | 330kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Outputs | 1 |
| Output Current | 10A |
| Output Voltage | 93V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| RoHS Compliant | No |
Compliance
| RoHS | Not Compliant |
Datasheet
Analog Devices LTC3703EGN Datasheet
Download the complete datasheet for Analog Devices LTC3703EGN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

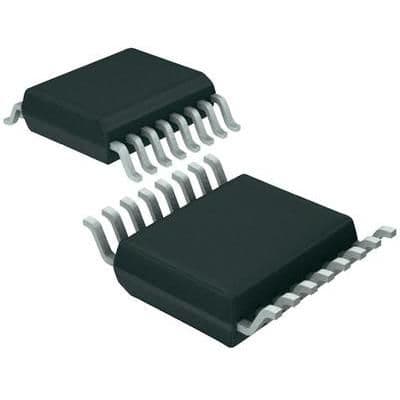

Product Images
