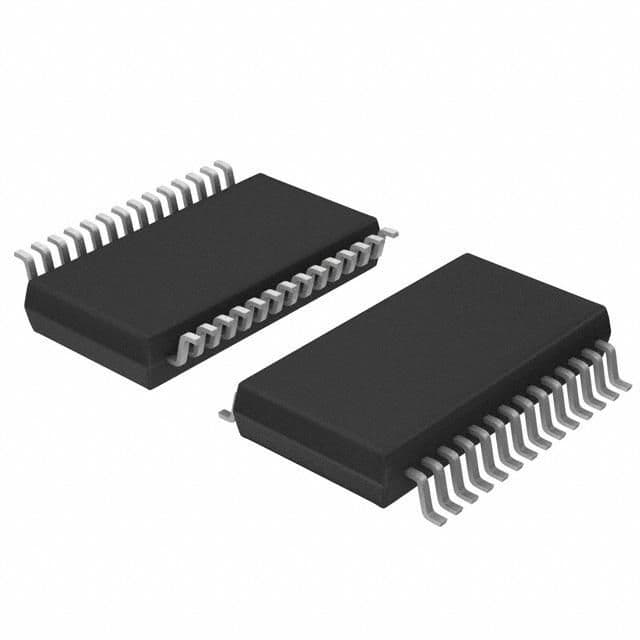

Dual-output DC/DC controller IC featuring fixed 5.5V output voltages and a maximum output current of 25A. Each output supports up to 5A with a 99% duty cycle and a minimum output voltage of 800mV. Operates from 3.5V to 36V input voltage with a maximum switching frequency of 590kHz. Packaged in a 28-pin SSOP with dimensions of 10.5mm x 5.6mm x 2mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices LTC3728EG#PBF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | G |
| Current - Output 1 | 5A |
| Current - Output 2 | 5A |
| Duty Cycle | 99% |
| Height | 2mm |
| Lead Free | Lead Free |
| Length | 10.5mm |
| Max Frequency | 590kHz |
| Max Input Voltage | 36V |
| Min Input Voltage | 3.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 800mV |
| Number of Outputs | 2 |
| Output Current | 25A |
| Output Type | Fixed |
| Output Voltage | 5.5V |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PolyPhase® |
| Voltage - Output 1 | 5.5V |
| Voltage - Output 2 | 5.5V |
| Width | 5.6mm |
| RoHS | Compliant |
