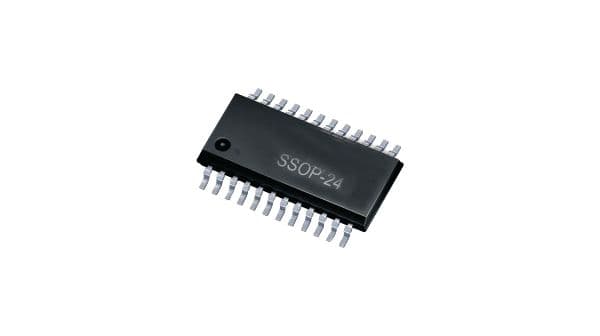

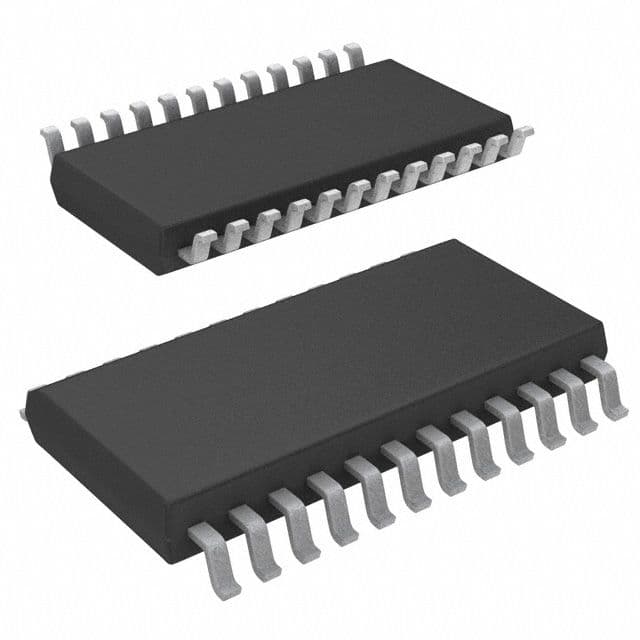

Adjustable DC/DC controller and regulator IC featuring a buck-boost topology. Operates with input voltages from 4V to 36V, supporting a maximum output voltage of 30V and an output current of 3A, with a peak capability of 5A. Achieves a high 99% duty cycle and a maximum switching frequency of 440kHz. Housed in a 24-pin SSOP package, this lead-free component operates across a wide temperature range of -40°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices LTC3780IG#PBF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | G |
| Duty Cycle | 99% |
| Height | 1.95mm |
| Lead Free | Lead Free |
| Length | 8.5mm |
| Max Frequency | 440kHz |
| Max Input Voltage | 36V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5A |
| Max Output Voltage | 30V |
| Min Output Voltage | 800mV |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 4V |
| Number of Outputs | 1 |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 30V |
| Package Quantity | 59 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 8.2mm |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices LTC3780IG#PBF to view detailed technical specifications.
