Technical Specifications
Analog Devices LTC3809EDD-1#PBF technical specifications.
General
| Package/Case | DFN |
| Duty Cycle | 100% |
| Frequency | 750kHz |
| Lead Free | Lead Free |
| Max Frequency | 600kHz |
| Max Input Voltage | 9.8V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 9.8V |
| Min Output Voltage | 600mV |
| Max Supply Voltage | 9.8V |
| Min Supply Voltage | 2.75V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 1A |
| Output Voltage | 9.8V |
| Package Quantity | 121 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3809EDD-1#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3809EDD-1#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

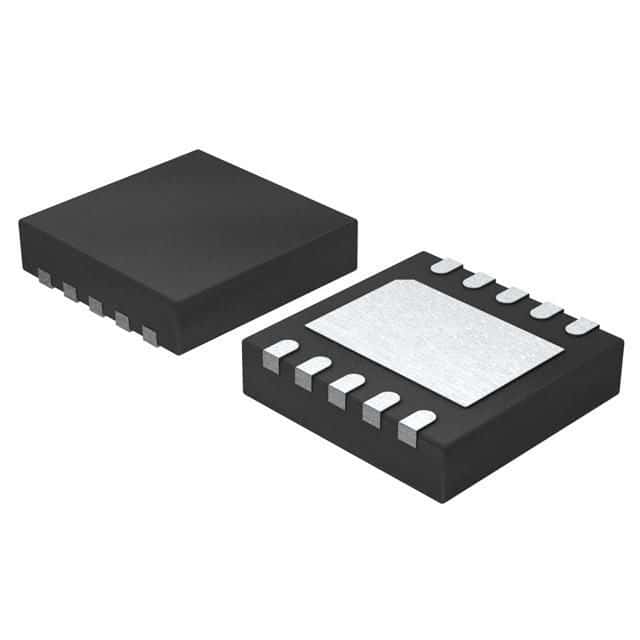

Product Images
