Analog Devices
LTC3824EMSE#TRPBF
DC-DC Controller, 1-Phase, 4-60V In, 36V/2.5A Out, 460kHz, 125°C, MSOP
Single-output DC-DC step-down controller for automotive applications. Features a wide 4V to 60V input voltage range and a maximum output voltage of 36V. Operates with a single output phase and a maximum frequency of 460kHz. Supports a 100% duty cycle and an output current of 2.5A. Clock synchronization is enabled, and the device is RoHS compliant and lead-free. Packaged in a 10-pin MSOP EP on tape and reel.
Frequency460kHz
PackageSOP
Quick Jump:
Technical Specifications
Analog Devices LTC3824EMSE#TRPBF technical specifications.
General
| Package/Case | SOP |
| Clock Sync | Yes |
| Duty Cycle | 100% |
| Lead Free | Lead Free |
| Max Duty Cycle | 100% |
| Max Frequency | 460kHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Number of Output Phases | 1 |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 2.5A |
| Output Voltage | 36V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3824EMSE#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC3824EMSE#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

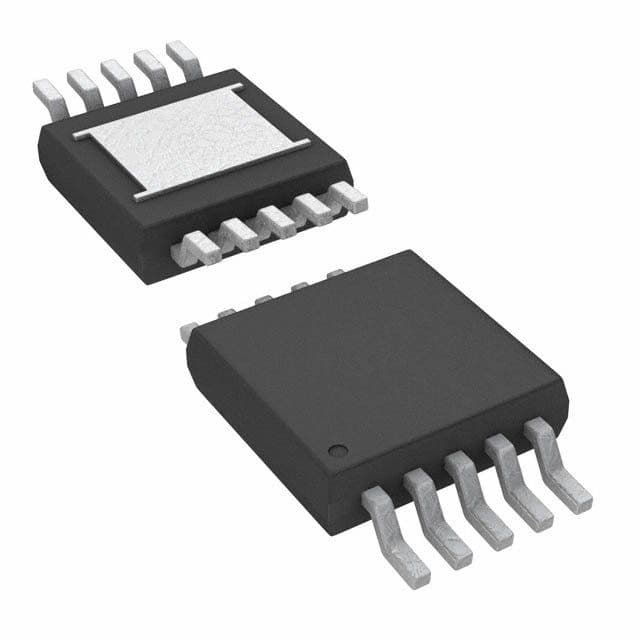

Product Images
