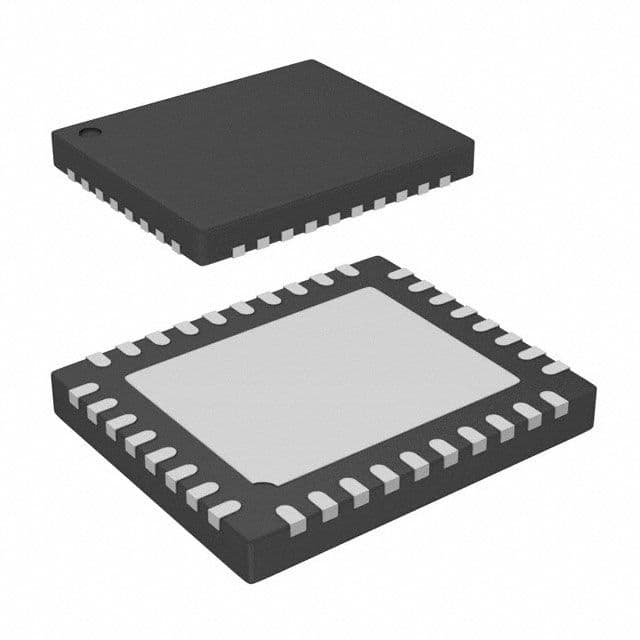

The LTC3861EUHE#PBF is a dual-phase DC/DC controller from Analog Devices, featuring two outputs with positive output configuration. Operating over a wide temperature range of -40°C to 125°C, this IC supports a maximum duty cycle of 91.5% and is available in a lead-free QFN package. The device is RoHS compliant and suitable for use in applications requiring efficient power management.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices LTC3861EUHE#PBF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFN |
| Clock Sync | No |
| Lead Free | Lead Free |
| Max Duty Cycle | 91.5% |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 3V |
| Number of Output Phases | 2 |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Type | PWM |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PolyPhase® |
| Synchronous Rectifier | No |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices LTC3861EUHE#PBF to view detailed technical specifications.
