High-performance DC/DC buck controller featuring a wide 4V to 60V input voltage range and up to 5A output current. This integrated circuit operates at a maximum frequency of 835kHz with a 99% duty cycle, supporting a 24V output voltage. Designed for demanding applications, it offers a broad operating temperature range from -40°C to 125°C and is housed in a compact QFN package. This power management IC is RoHS compliant.
Frequency835kHz
PackageQFN
Quick Jump:
Technical Specifications
Analog Devices LTC3891EUDC#PBF technical specifications.
General
| Package/Case | QFN |
| Duty Cycle | 99% |
| Max Frequency | 835kHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 60V |
| Min Supply Voltage | 4V |
| Number of Outputs | 1 |
| Output Current | 5A |
| Output Voltage | 24V |
| Package Quantity | 91 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3891EUDC#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3891EUDC#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

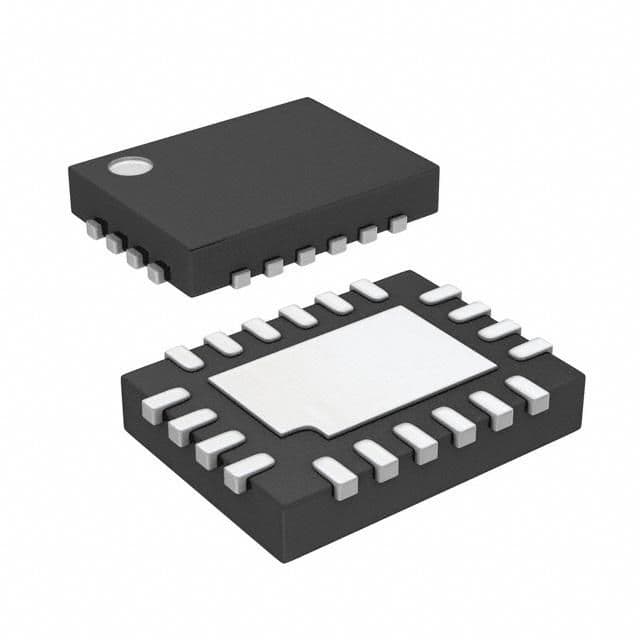

Product Images
