High-performance DC/DC controller for buck conversion, featuring a single output with a maximum output voltage of 24V and an output current of 5A. Operates with a maximum frequency of 835kHz and a duty cycle up to 99%. Designed for a wide temperature range from -40°C to 125°C, this lead-free, RoHS-compliant component is housed in a QFN package.
Frequency835kHz
PackageQFN
Quick Jump:
Technical Specifications
Analog Devices LTC3891IUDC#PBF technical specifications.
General
| Package/Case | QFN |
| Duty Cycle | 99% |
| Lead Free | Lead Free |
| Max Frequency | 835kHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Number of Outputs | 1 |
| Output Current | 5A |
| Output Voltage | 24V |
| Package Quantity | 91 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3891IUDC#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3891IUDC#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

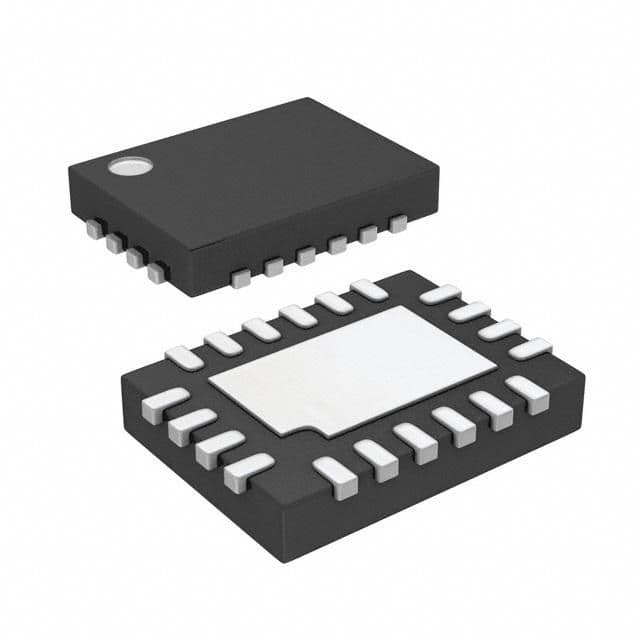

Product Images
