Single-cell lithium-ion battery charger IC featuring a synchronous buck converter. Delivers up to 2A charge current and 2A output current with a 4.2V output voltage. Operates from a 4V to 5.5V input voltage range and supports a maximum input voltage of 5.5V. Packaged in QFN, this RoHS compliant component functions across an operating temperature range of -40°C to 85°C.
PackageQFN
Quick Jump:
Technical Specifications
Analog Devices LTC4001EUF#PBF technical specifications.
General
| Package/Case | QFN |
| Lead Free | Lead Free |
| Max Charge Current | 2A |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4V |
| Number of Cells | 1 |
| Output Current | 2A |
| Output Voltage | 4.2V |
| Package Quantity | 91 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC4001EUF#PBF Datasheet
Download the complete datasheet for Analog Devices LTC4001EUF#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

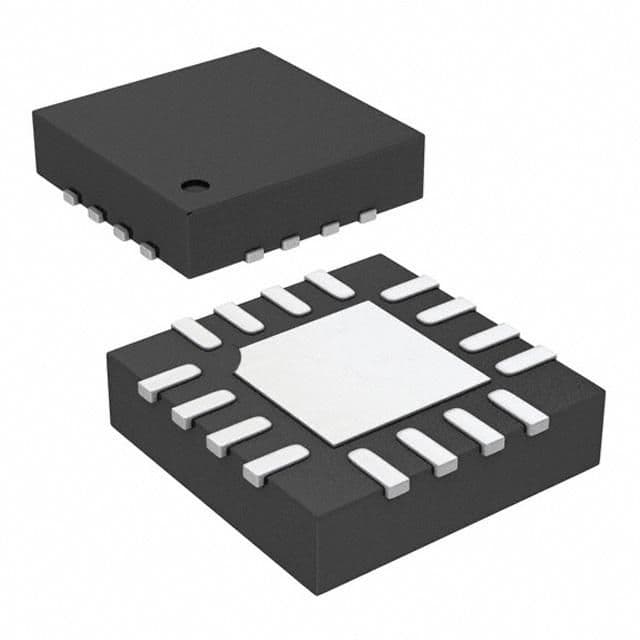

Product Images
