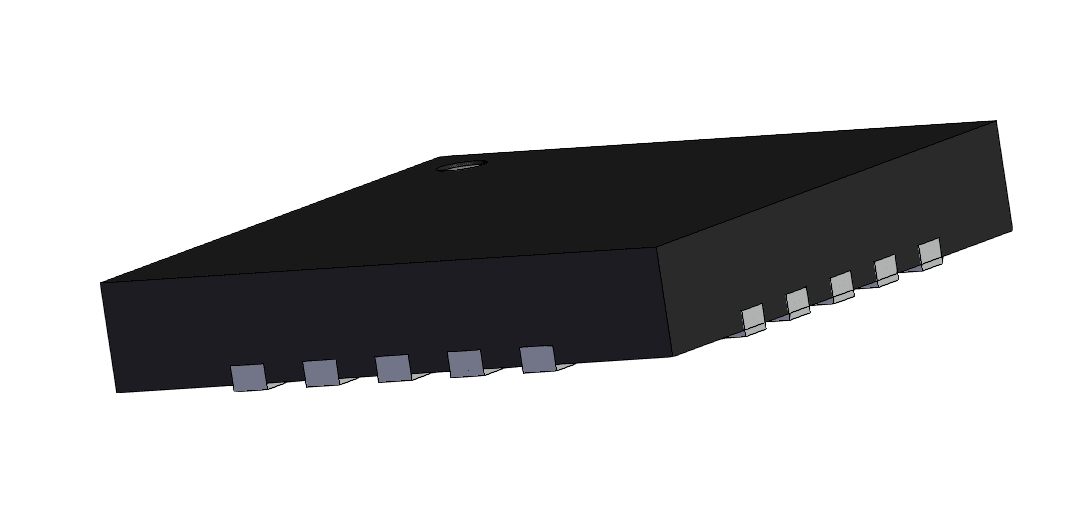

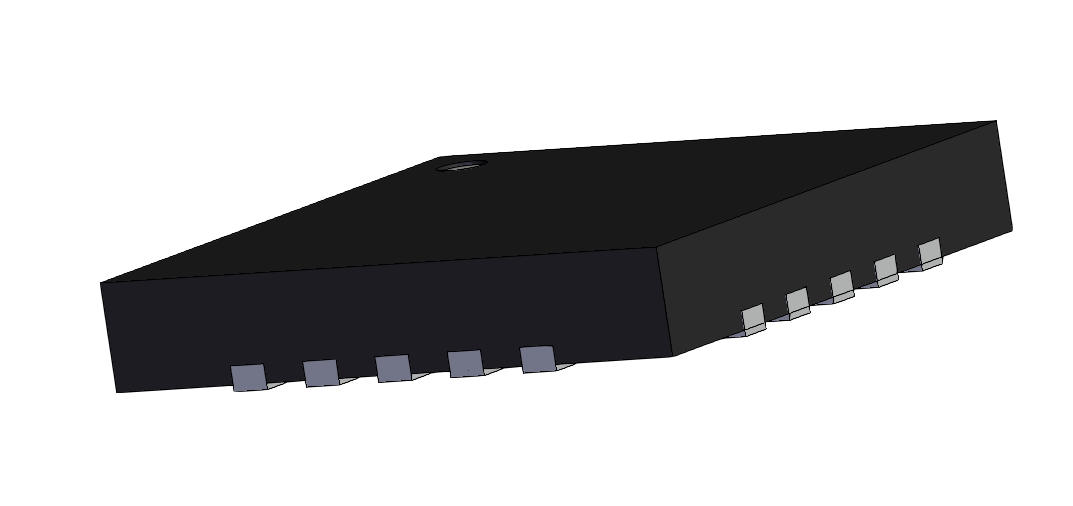

High-performance battery charger IC designed for multi-cell applications. Features a maximum charge current of 12A and supports input voltages from 6V to 28V. Offers a maximum output voltage of 28V, suitable for charging up to 4 cells. Operates across a wide temperature range of -40°C to 125°C. Packaged in a 20-pin QFN, this RoHS-compliant component ensures reliable power management.
PackageQFN
Quick Jump:
Technical Specifications
Analog Devices LTC4012IUF#PBF technical specifications.
General
Package/Case
QFN
Max Charge Current
12A
Max Input Voltage
28V
Min Input Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
28V
Max Supply Voltage
28V
Min Supply Voltage
6V
Number of Cells
4
Output Voltage
28V
Package Quantity
91
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC4012IUF#PBF Datasheet
Download the complete datasheet for Analog Devices LTC4012IUF#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
