Lithium-ion battery gas gauge and coulometer IC designed for single-cell applications. Features a wide input voltage range of 2.7V to 8.5V and an operating temperature range of 0°C to 70°C. Housed in a 10-lead MSOP package with gull-wing terminals, this surface-mount component offers precise battery monitoring. RoHS compliant and lead-free, it is suitable for commercial temperature grade applications.
PackageMSOP
Quick Jump:
Technical Specifications
Analog Devices LTC4150CMS#PBF technical specifications.
General
| Battery Type | LITHIUM-ION |
| Package/Case | MSOP |
| Height | 0.86mm |
| JESD-30 Code | S-PDSO-G10 |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Input Voltage | 8.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Voltage | 9V |
| Min Output Voltage | -300mV |
| Max Supply Voltage | 8.5V |
| Min Supply Voltage | 2.7V |
| Moisture Sensitivity Level | 1 |
| Number of Cells | 1 |
| Number of Functions | 1 |
| Package Body Material | Plastic |
| Package Code | TSSOP |
| Package Quantity | 50 |
| Package Shape | Square |
| Packaging | Rail/Tube |
| Peak Reflow Temperature (Cel) | 260°C |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Surface Mount | Yes |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin |
| Terminal Form | Gull Wing |
| Terminal Position | DUAL |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC4150CMS#PBF Datasheet
Download the complete datasheet for Analog Devices LTC4150CMS#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

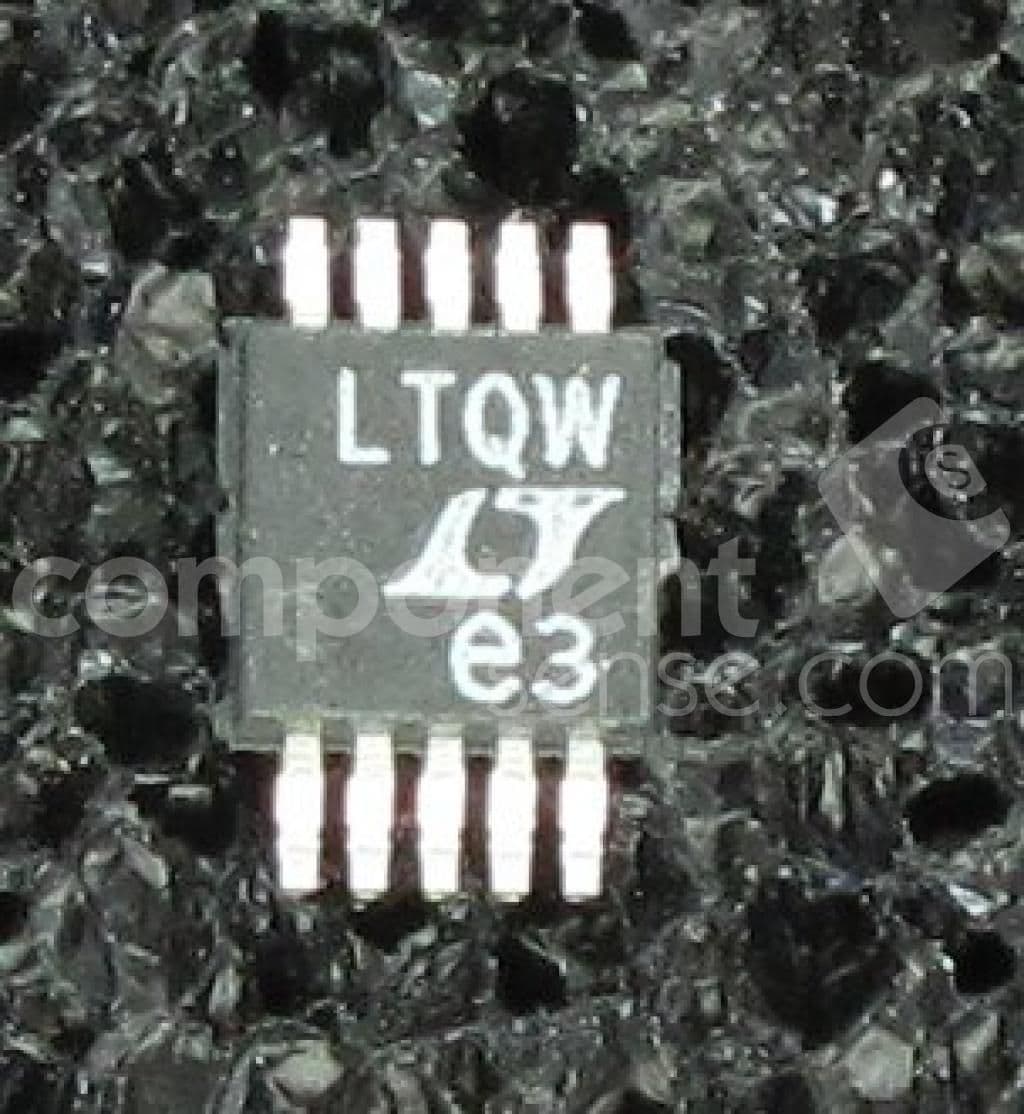

Product Images
