The LTC4215CUFD-2#PBF is a hot swap controller from Analog Devices, packaged in a QFN with dimensions of 4mm depth and 5mm length. It operates within a temperature range of 0°C to 70°C and accepts supply voltages between 2.9V and 15V. This device is compliant with RoHS regulations and is available in quantities of 73 per packaging unit.
PackageQFN
Quick Jump:
Technical Specifications
Analog Devices LTC4215CUFD-2#PBF technical specifications.
General
| Package/Case | QFN |
| Depth | 4mm |
| Length | 5mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 15V |
| Min Supply Voltage | 2.9V |
| Package Quantity | 73 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC4215CUFD-2#PBF Datasheet
Download the complete datasheet for Analog Devices LTC4215CUFD-2#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

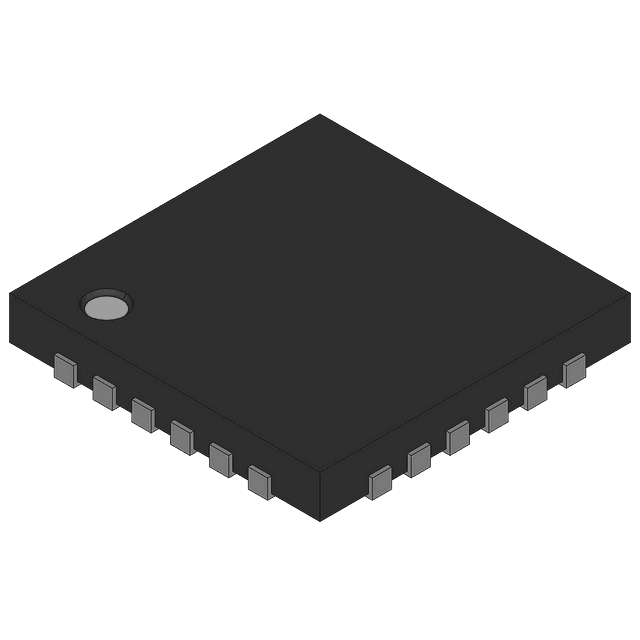

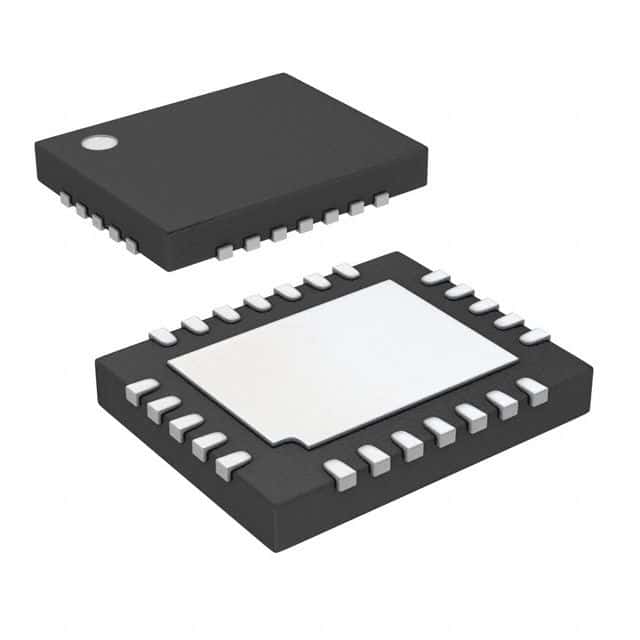

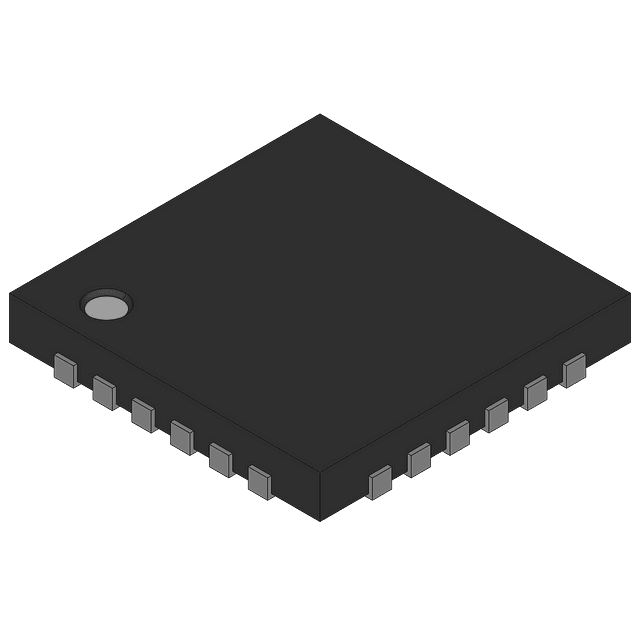

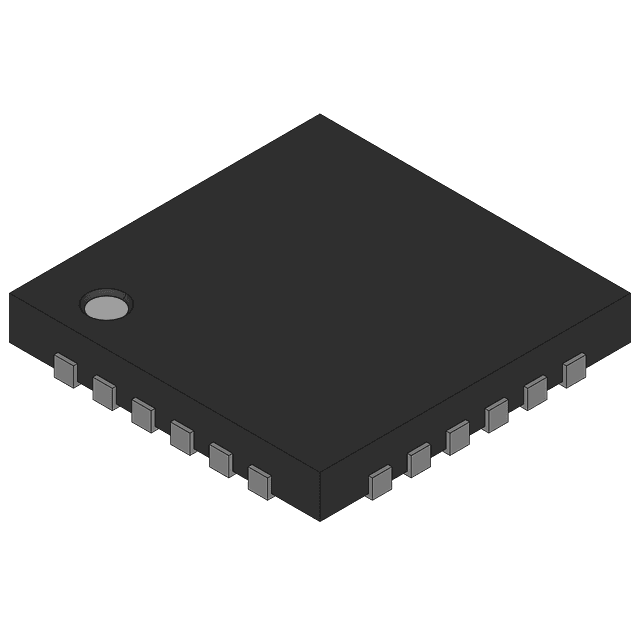

Product Images
