The LTC4261CUFD-2#PBF is a hot swap controller packaged in a QFN EP with dimensions of 4mm depth and 5mm length. It operates within a temperature range of 0°C to 70°C and is supplied with a voltage range of -100V to -12V. This component is available in quantities of 73 and is packaged in rail/Tube format. It is compliant with RoHS regulations but does not feature radiation hardening.
PackageQFN EP
Quick Jump:
Technical Specifications
Analog Devices LTC4261CUFD-2#PBF technical specifications.
General
| Package/Case | QFN EP |
| Depth | 4mm |
| Length | 5mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | -100V |
| Min Supply Voltage | -12V |
| Package Quantity | 73 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC4261CUFD-2#PBF Datasheet
Download the complete datasheet for Analog Devices LTC4261CUFD-2#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

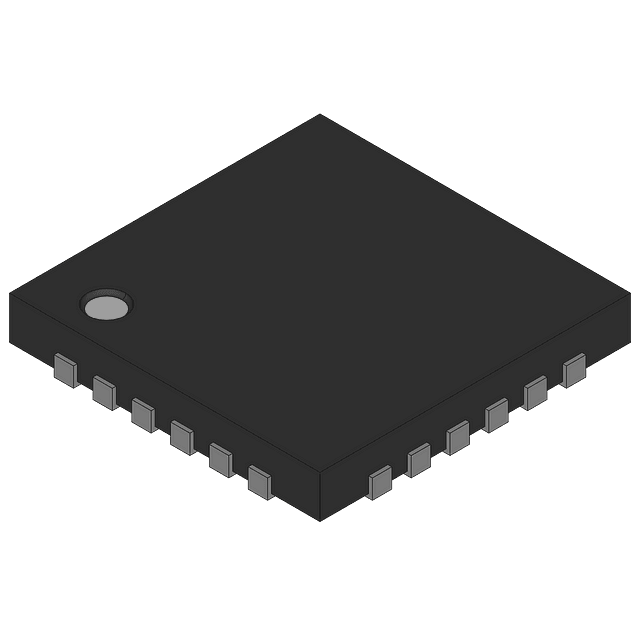

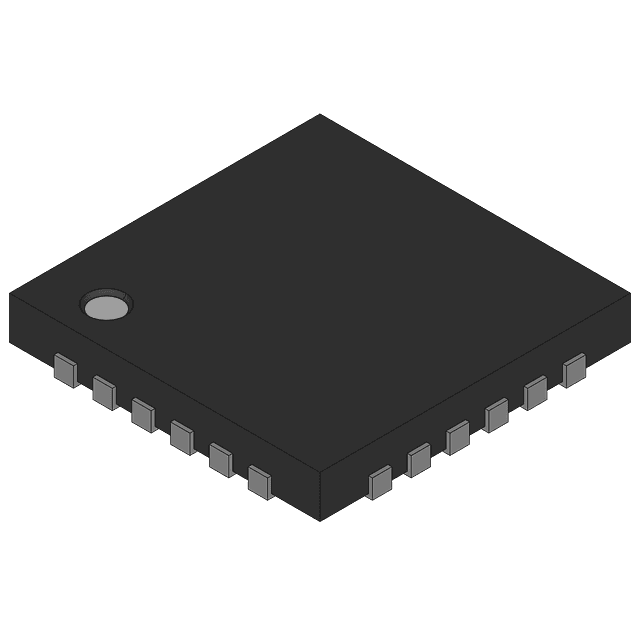

Product Images
