2-Wire Bus Buffer IC for Hot-Swap applications. Features a 2-wire interface and operates within a 2.7V to 5.5V supply voltage range. This surface mount component is housed in an 8-MSOP package with dimensions of 3mm (L) x 3mm (W) x 0.86mm (H). It offers a maximum operating temperature of 70°C and is RoHS compliant.
PackageMSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC4300A-1CMS8#PBF technical specifications.
General
| Package/Case | MSOP |
| Depth | 3mm |
| Height | 0.86mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC4300A-1CMS8#PBF Datasheet
Download the complete datasheet for Analog Devices LTC4300A-1CMS8#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

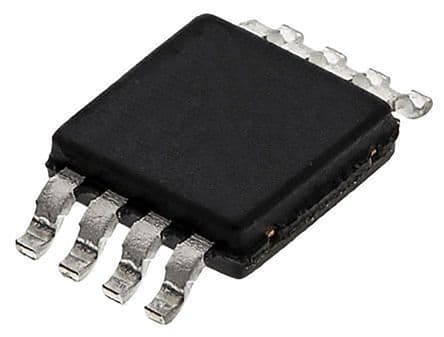

Product Images
