Quad 2-Wire Bus Multiplexer IC for I2C and SMBus interfaces. Features a 2.7V to 5.5V supply voltage range and operates from 0°C to 70°C. Packaged in a 24-pin SSOP with dimensions of 8.74mm (L) x 3.99mm (W) x 1.48mm (H). Surface mountable and lead-free.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC4306CGN#PBF technical specifications.
General
| Package/Case | SSOP |
| Height | 1.48mm |
| Interface | I2C, SMBus, 2-Wire |
| Lead Free | Lead Free |
| Length | 8.74mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Package Quantity | 55 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 3.99mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC4306CGN#PBF Datasheet
Download the complete datasheet for Analog Devices LTC4306CGN#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

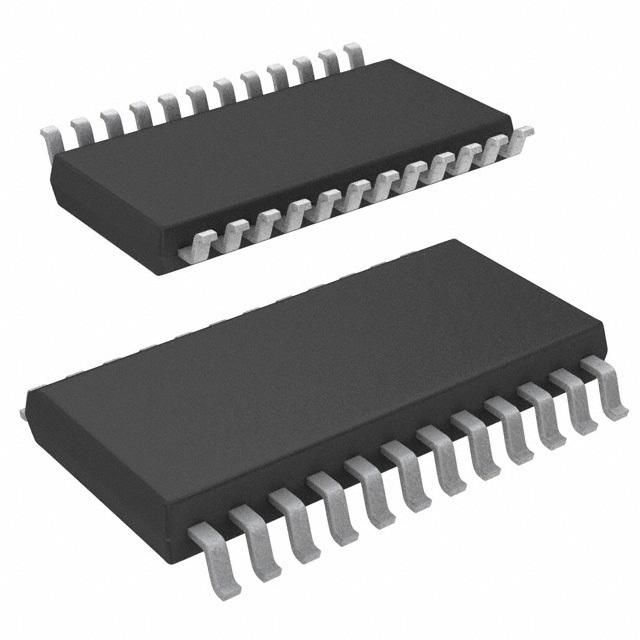

Product Images
