Quad-channel I2C/SMBus multiplexer for 2-wire bus interfacing. Operates from a 2.7V to 5.5V supply voltage, with a maximum operating temperature of 85°C and a minimum of -40°C. Surface mountable in a QFN package, this RoHS compliant component is designed for general interface applications.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC4306IUFD#PBF technical specifications.
General
| Package/Case | QFN |
| Interface | I2C, SMBus, 2-Wire |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Package Quantity | 73 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC4306IUFD#PBF Datasheet
Download the complete datasheet for Analog Devices LTC4306IUFD#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

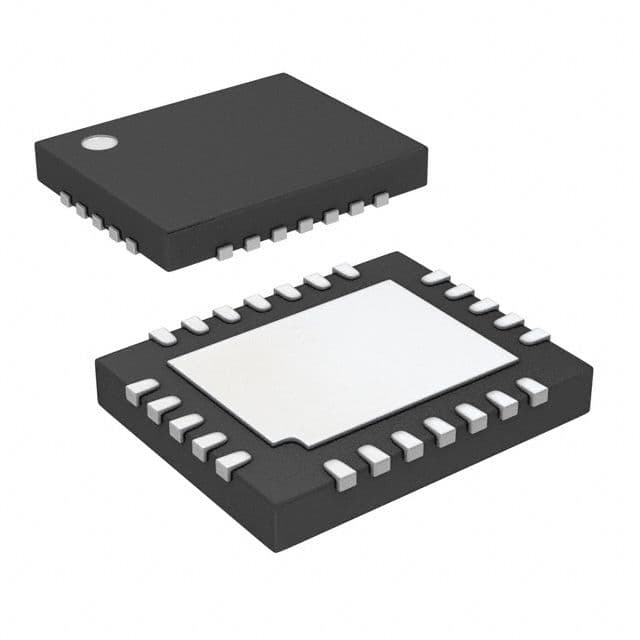

Product Images
