ANALOG DEVICES

LTC4352HMS#PBF

Datasheet

OR Controller, 18V, 2.9V, 1-Ch, 250ns On/500ns Off, MSOP

Analog Devices

LTC4352HMS#PBF

Name: LTC4352HMS#PBF Analog Devices
Brand: Analog Devices
SKU: LTC4352HMS#PBF

OR Controller, 18V, 2.9V, 1-Ch, 250ns On/500ns Off, MSOP

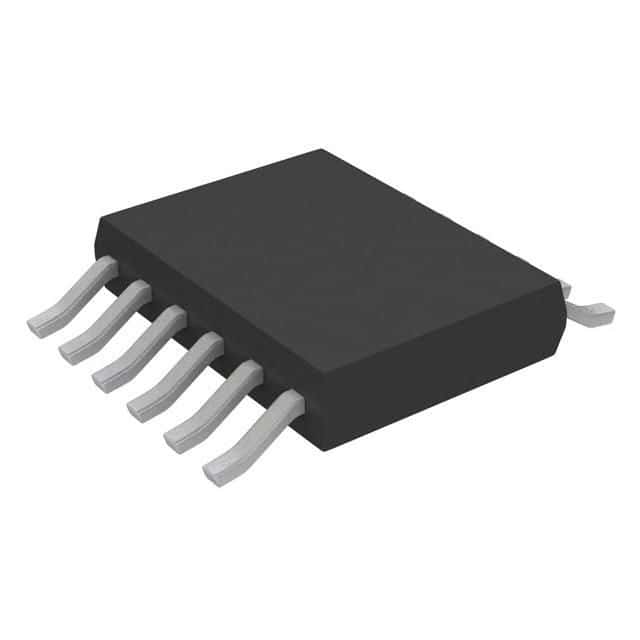

Automotive OR controller IC featuring a single N-channel driver and output, operating from a 2.9V to 18V supply. This integrated circuit offers a 250ns turn-on delay and a 500ns turn-off delay. Encased in a 12-pin MSOP package, it functions across an extended temperature range of -40°C to 150°C. The component is RoHS compliant and lead-free.

PackageMSOP

Quick Jump:

Technical Specifications

Analog Devices LTC4352HMS#PBF technical specifications.

General

Package/Case	MSOP
Lead Free	Lead Free
Max Operating Temperature	150°C
Min Operating Temperature	-40°C
Max Supply Voltage	18V
Min Supply Voltage	2.9V
Number of Drivers	1
Number of Outputs	1
Package Quantity	37
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Turn-Off Delay Time	500ns
Turn-On Delay Time	250ns
