ANALOG DEVICES

LTC4413EDD-1#TRPBF

Datasheet

Dual P-Channel OR Controller, 2.6A, 0.14 Ohm, DFN EP

Analog Devices

LTC4413EDD-1#TRPBF

Name: LTC4413EDD-1#TRPBF Analog Devices
Brand: Analog Devices
SKU: LTC4413EDD-1#TRPBF

Dual P-Channel OR Controller, 2.6A, 0.14 Ohm, DFN EP

Dual P-channel MOSFET OR controller featuring 0.14 Ohm on-resistance and 2.6A maximum output current. This integrated circuit operates within a -40°C to 85°C temperature range, consuming a low 40µA operating supply current. The component offers turn-on delay of 11µs and turn-off delay of 2µs. Packaged in a 3mm DFN EP, it is supplied on tape and reel in quantities of 2500 and is RoHS compliant.

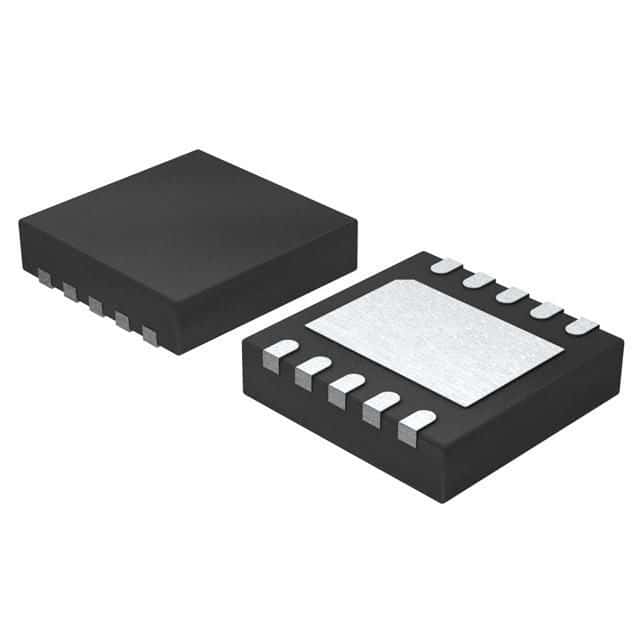

PackageDFN EP

Quick Jump:

Technical Specifications

Analog Devices LTC4413EDD-1#TRPBF technical specifications.

General

Package/Case	DFN EP
Length	3mm
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Output Current	2.6A
Operating Supply Current	40uA
Package Quantity	2500
Packaging	Tape and Reel
Radiation Hardening	No
RoHS Compliant	Yes
Turn-Off Delay Time	2us
Turn-On Delay Time	11us
