Dual P-channel OR controller IC in a 10-pin MSOP package, measuring 3mm x 3mm with a height of 0.86mm. Features a wide operating voltage range from 3.5V to 36V and supports two drivers and two outputs. Operates across a temperature range of -40°C to 85°C. RoHS compliant.
PackageMSOP
Quick Jump:
Technical Specifications
Analog Devices LTC4416EMS#PBF technical specifications.
General
Package/Case
MSOP
Height
0.86mm
Length
3mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
3.5V
Number of Drivers
2
Number of Outputs
2
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC4416EMS#PBF Datasheet
Download the complete datasheet for Analog Devices LTC4416EMS#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

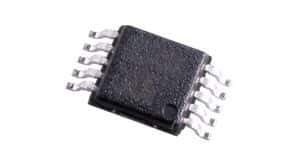

Product Images
