Power management IC featuring automatic source selection with a 1V threshold voltage. Operates from 2.5V to 36V supply voltage, consuming 28uA operating current. Offers 700ns turn-off and 1.4us turn-on delay times. Packaged in a 24-pin QFN, this RoHS compliant component operates between 0°C and 70°C.
PackageQFN
Current28uA
Quick Jump:
Technical Specifications
Analog Devices LTC4417CUF#PBF technical specifications.
General
Package/Case
QFN
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
36V
Min Supply Voltage
2.5V
Operating Supply Current
28uA
Package Quantity
91
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PowerPath™
Supply Current
28uA
Threshold Voltage
1V
Turn-Off Delay Time
700ns
Turn-On Delay Time
1.4us
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC4417CUF#PBF Datasheet
Download the complete datasheet for Analog Devices LTC4417CUF#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

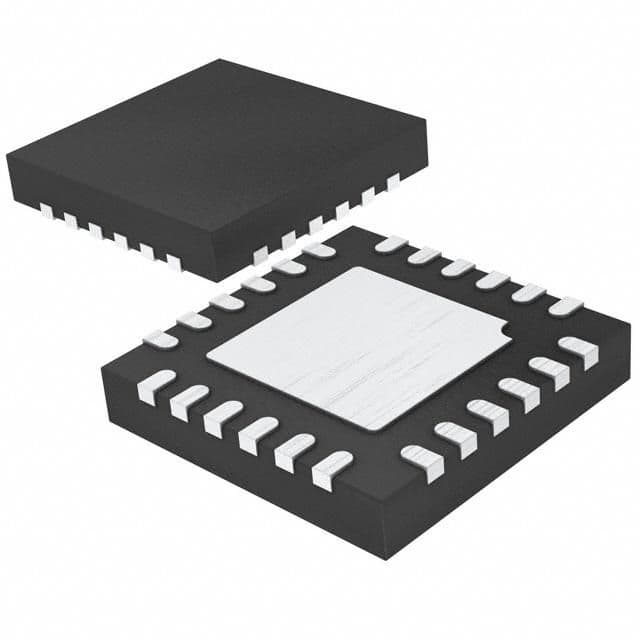

Product Images
