Power management IC featuring source selection for up to three power inputs. Operates from a 2.5V to 36V supply voltage with a low 28µA operating supply current. Includes a 1V threshold voltage and fast turn-on/off delays of 1.4µs and 700ns respectively. Packaged in a 24-pin SSOP, this lead-free and RoHS compliant component is suitable for a wide temperature range of -40°C to 85°C.
PackageSSOP
Current28uA
Quick Jump:
Technical Specifications
Analog Devices LTC4417IGN#PBF technical specifications.
General
| Package/Case | SSOP |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 2.5V |
| Operating Supply Current | 28uA |
| Package Quantity | 55 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PowerPath™ |
| Supply Current | 28uA |
| Threshold Voltage | 1V |
| Turn-Off Delay Time | 700ns |
| Turn-On Delay Time | 1.4us |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC4417IGN#PBF Datasheet
Download the complete datasheet for Analog Devices LTC4417IGN#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

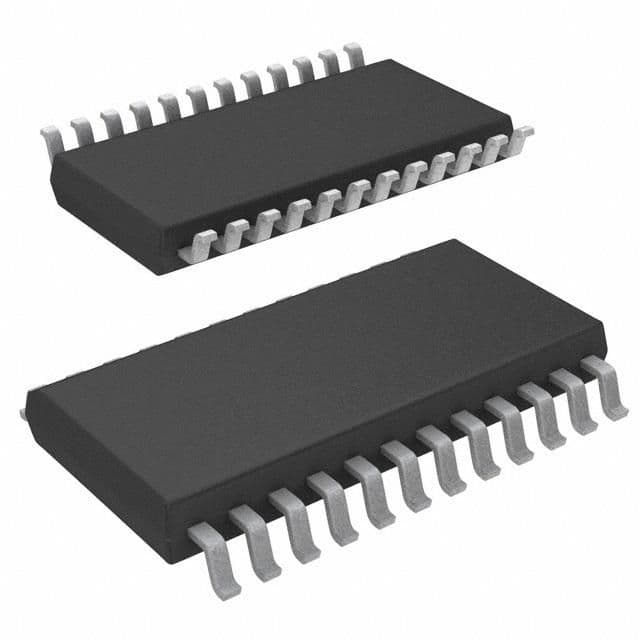

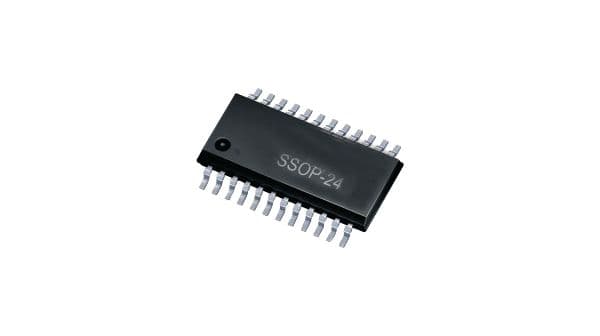

Product Images
