Single-channel gate driver IC, ideal for high-side and half-bridge applications. Features 1.1A output current per channel and a maximum output current of 2.4A. Operates with supply voltages from -300mV to 15V. Offers a propagation delay of 65ns and a fall time of 70ns. Packaged in a 6-pin TSOT-23, supplied on tape and reel.
PackageSOT-23-6
Quick Jump:
Technical Specifications
Analog Devices LTC4440ES6-5#TRMPBF technical specifications.
General
Package/Case
SOT-23-6
Channel Type
Single
Fall Time
70ns
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
2.4A
Max Supply Voltage
15V
Min Supply Voltage
-300mV
Number of Drivers
1
Number of Outputs
1
On-State Resistance
1.85R
Output Current per Channel
1.1A
Output Voltage
15V
Package Quantity
500
Packaging
Tape and Reel
Propagation Delay
65ns
Radiation Hardening
No
RoHS Compliant
Yes
Turn-On Delay Time
65ns
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC4440ES6-5#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LTC4440ES6-5#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

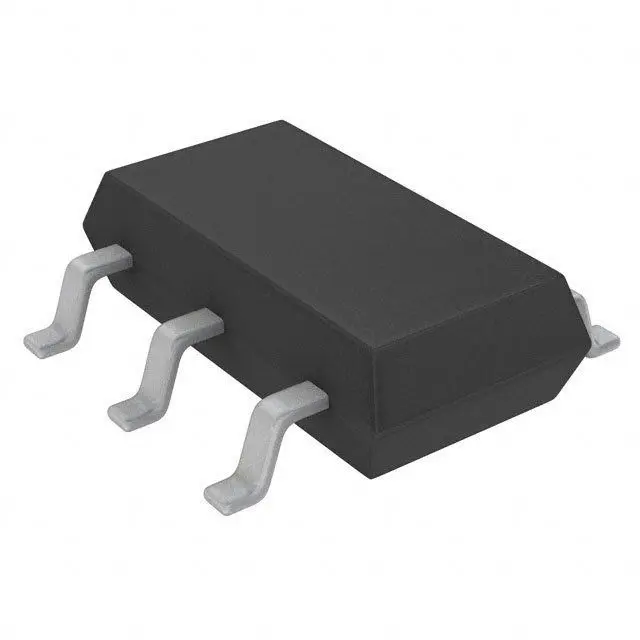

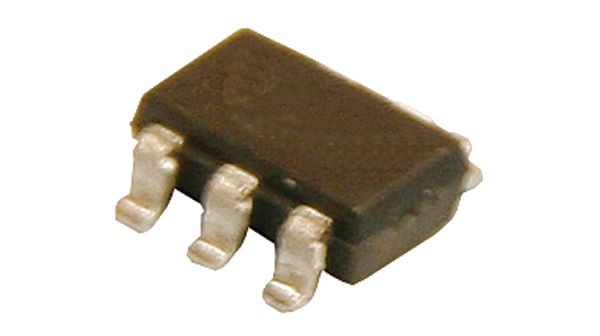

Product Images
