Single-channel high-side MOSFET gate driver IC, operating from an 8V to 15V supply. Features a 2.4A maximum output current, 65ns propagation delay, and 70ns fall time. Packaged in a compact SOT-23-6 surface-mount case, this RoHS compliant component offers a wide operating temperature range of -40°C to 85°C.
PackageSOT-23
Quick Jump:
Technical Specifications
Analog Devices LTC4440ES6#TRMPBF technical specifications.
General
| Package/Case | SOT-23 |
| Channel Type | Single |
| Fall Time | 70ns |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2.4A |
| Max Supply Voltage | 15V |
| Min Supply Voltage | -300mV |
| Number of Channels | 1 |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Propagation Delay | 65ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 65ns |
| Width | 1.75mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC4440ES6#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LTC4440ES6#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

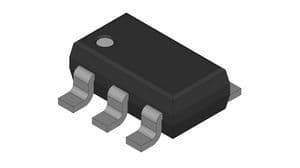

Product Images
