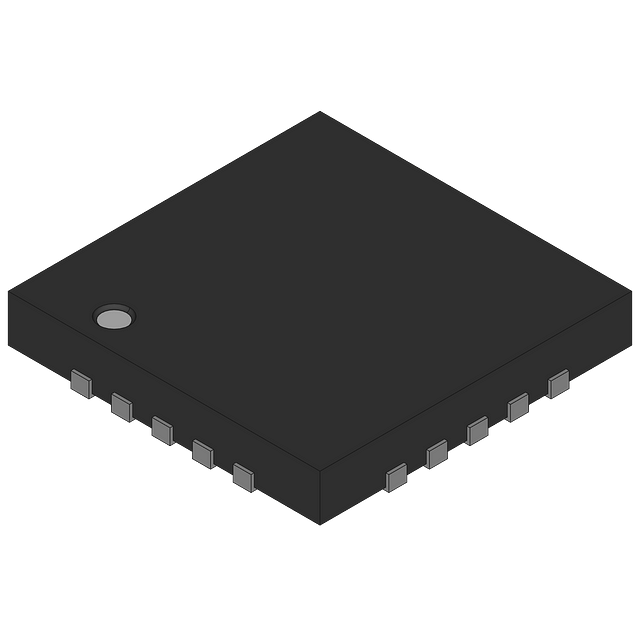

The LTC5542IUH#PBF is a QFN-packaged mixer from Analog Devices with a frequency range of 1.6GHz to 2.7GHz and a gain of 8dB. It operates within a temperature range of -40°C to 85°C and can be supplied with a voltage between 3.3V and 5V. The device is RoHS compliant and has an operating supply current of 199mA.
Frequency2.7GHz
PackageQFN
Current99mA
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Analog Devices LTC5542IUH#PBF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Analog Devices LTC5542IUH#PBF technical specifications.
General
| Package/Case | QFN |
| Frequency | 2.7GHz |
| Gain | 8dB |
| Max Frequency | 2.7GHz |
| Min Frequency | 1.6GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 3.3V |
| Noise Figure | 9.9dB |
| Operating Supply Current | 199mA |
| Package Quantity | 73 |
| Packaging | Rail/Tube |
| Power Gain | 7.4dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 99mA |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC5542IUH#PBF Datasheet
Download the complete datasheet for Analog Devices LTC5542IUH#PBF to view detailed technical specifications.
