Quad-channel, general-purpose operational amplifier featuring a 1.5MHz bandwidth and 0.5V/µs slew rate. CMOS technology enables low 110µA operating supply current. Offers 300µV input offset voltage and 1pA input bias current. Operates from 2.5V to 5.5V supply, with 12.5mA output current per channel. Surface mountable in a DFN EP package, with 70dB CMRR and 94dB PSRR.
PackageDFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC6085CDHC#PBF technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1.5MHz |
| Package/Case | DFN EP |
| Common Mode Rejection Ratio | 70dB |
| Gain Bandwidth Product | 1.5MHz |
| Input Bias Current | 1pA |
| Input Offset Voltage (Vos) | 300uV |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Amplifiers | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 110uA |
| Output Current per Channel | 12.5mA |
| Package Quantity | 73 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 94dB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.5V/µs |
| Technology | CMOS |
| Unity Gain Bandwidth Product | 1.5MHz |
| Voltage Gain | 133.98dB |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC6085CDHC#PBF Datasheet
Download the complete datasheet for Analog Devices LTC6085CDHC#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

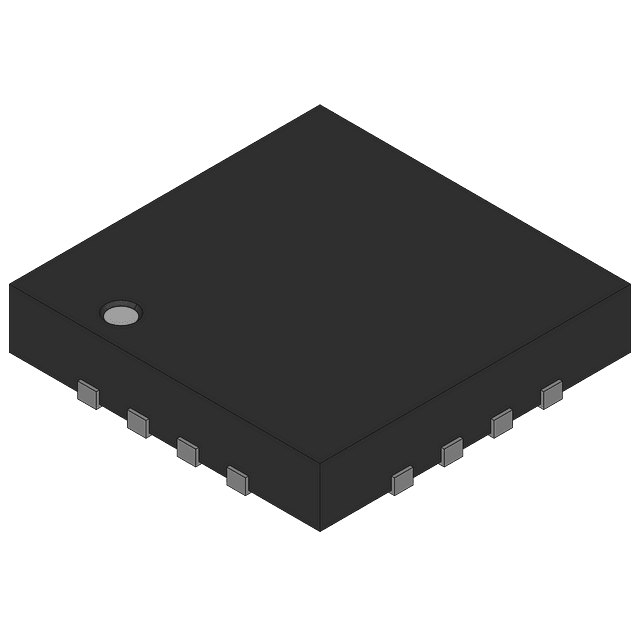

Product Images
