Analog Devices
LTC6101AIMS8#PBF
Single 200kHz Gain-Bandwidth Product Op-Amp, 1mA Output Current, MSOP Package
The LTC6101AIMS8#PBF is a single-channel op-amp with a gain-bandwidth product of 200kHz and an output current of 1mA. It operates over a temperature range of -40°C to 85°C and is supplied with a current of 375uA. The device is packaged in a 50-unit MSOP package and is RoHS compliant.
PackageMSOP
Current375uA
Quick Jump:
Technical Specifications
Analog Devices LTC6101AIMS8#PBF technical specifications.
General
| Bandwidth | 200kHz |
| Package/Case | MSOP |
| Gain Bandwidth Product | 200kHz |
| Input Bias Current | 100nA |
| Input Offset Voltage (Vos) | 150uV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 60V |
| Min Supply Voltage | 4V |
| Nominal Gain Bandwidth Product | 200kHz |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 375uA |
| Output Current per Channel | 1mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 110dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 375uA |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC6101AIMS8#PBF Datasheet
Download the complete datasheet for Analog Devices LTC6101AIMS8#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

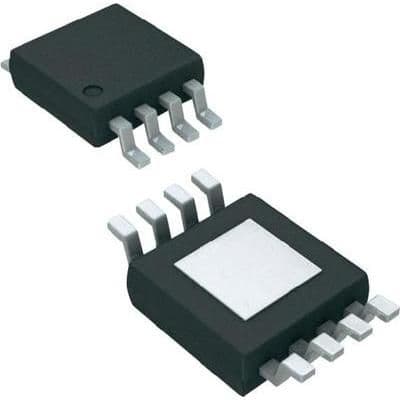

Product Images
