High-precision current sense amplifier IC featuring a 200kHz bandwidth and 85µV input offset voltage. This single-channel amplifier operates from a 4V to 60V supply voltage, with a typical operating supply voltage of 28V and a maximum supply current of 1.04mA. The MSOP package offers a compact footprint with dimensions of 3mm x 3mm x 0.86mm. Achieving a Power Supply Rejection Ratio (PSRR) of 140dB, this RoHS compliant component is suitable for a wide range of applications.
PackageMSOP
Current450uA
Quick Jump:
Technical Specifications
Analog Devices LTC6104CMS8#PBF technical specifications.
General
| Bandwidth | 200kHz |
| Package/Case | MSOP |
| Gain Bandwidth Product | 200kHz |
| Height | 0.86mm |
| Input Bias Current | 100nA |
| Input Offset Voltage (Vos) | 85uV |
| Length | 3mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 1.04mA |
| Max Supply Voltage | 60V |
| Min Supply Voltage | 4V |
| Nominal Gain Bandwidth Product | 140kHz |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 2 |
| Operating Supply Current | 640uA |
| Operating Supply Voltage | 28V |
| Output Current per Channel | 1mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 140dB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 450uA |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC6104CMS8#PBF Datasheet
Download the complete datasheet for Analog Devices LTC6104CMS8#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

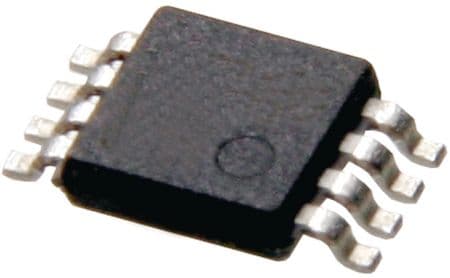

Product Images
