Dual-channel, general-purpose operational amplifier featuring a 180MHz gain bandwidth product and 120MHz -3dB bandwidth. This surface mount IC offers a 90V/µs slew rate and 100mA output current per channel. It operates from a 2.5V to 5.25V supply, with a typical operating supply current of 1.25mA. Key performance metrics include 78dB CMRR and 69dB PSRR, with low input bias current of 400nA and input offset voltage of 100µV. Packaged in a 10-MSOP for tape and reel distribution.
PackageMSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC6247CMS#TRPBF technical specifications.
General
-3db Bandwidth
120MHz
Amplifier Type
GENERAL PURPOSE
Package/Case
MSOP
Common Mode Rejection Ratio
78dB
Gain Bandwidth Product
180MHz
Input Bias Current
400nA
Input Offset Voltage (Vos)
100uV
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.25V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Circuits
2
Number of Elements
2
Operating Supply Current
1.25mA
Output Current per Channel
100mA
Package Quantity
2500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
69dB
RoHS Compliant
Yes
Slew Rate
90V/µs
Technology
BIPOLAR
Unity Gain Bandwidth Product
180MHz
Voltage Gain
93.06dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC6247CMS#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC6247CMS#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

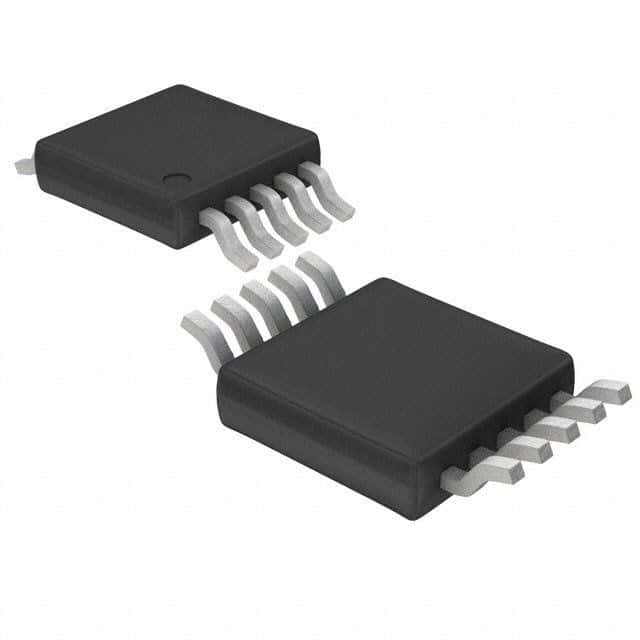

Product Images
