Dual low-power operational amplifier featuring Rail-to-Rail input and output. Achieves a 720MHz gain bandwidth product and 400MHz -3dB bandwidth with a 280V/µs slew rate. Operates from a single supply of 2.5V to 5.25V or dual supplies of ±1.25V to ±2.625V. Offers 100mA output current per channel and a typical input bias current of 1.4µA. Packaged in an 8-pin TSOT for tape and reel distribution.
PackageTSOT
Quick Jump:
Technical Specifications
Analog Devices LTC6253CTS8#TRMPBF technical specifications.
General
| -3db Bandwidth | 400MHz |
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 720MHz |
| Package/Case | TSOT |
| Common Mode Rejection Ratio | 85dB |
| Gain Bandwidth Product | 720MHz |
| Input Bias Current | 1.4uA |
| Input Offset Voltage (Vos) | 50uV |
| Max Dual Supply Voltage | 2.625V |
| Min Dual Supply Voltage | 1.25V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.5V |
| Nominal Gain Bandwidth Product | 720MHz |
| Number of Amplifiers | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 4.25mA |
| Output Current per Channel | 100mA |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 68dB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 280V/µs |
| Technology | BIPOLAR |
| Voltage Gain | 95.56dB |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC6253CTS8#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LTC6253CTS8#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

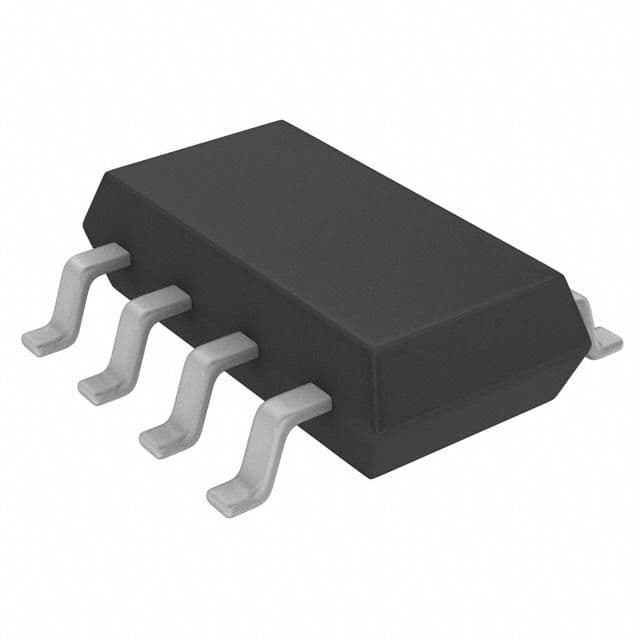

Product Images
