Quad-channel, general-purpose operational amplifier featuring a 720MHz gain bandwidth product and 400MHz -3dB bandwidth. This amplifier offers a high slew rate of 280V/µs and a low input bias current of 1.4µA. Designed for versatility, it operates with supply voltages from 2.5V to 5.25V and provides 100mA output current per channel. The component is housed in a 16-MSOP package and exhibits excellent 85dB CMRR and 68dB PSRR.
PackageMSOP
Quick Jump:
Technical Specifications
Analog Devices LTC6254CMS#PBF technical specifications.
General
-3db Bandwidth
400MHz
Amplifier Type
GENERAL PURPOSE
Bandwidth
720MHz
Package/Case
MSOP
Common Mode Rejection Ratio
85dB
Gain Bandwidth Product
720MHz
Input Bias Current
1.4uA
Input Offset Voltage (Vos)
50uV
Max Dual Supply Voltage
2.625V
Min Dual Supply Voltage
1.25V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.25V
Min Supply Voltage
2.5V
Nominal Gain Bandwidth Product
720MHz
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
4.25mA
Output Current per Channel
100mA
Package Quantity
37
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
68dB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
280V/µs
Technology
BIPOLAR
Voltage Gain
95.56dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC6254CMS#PBF Datasheet
Download the complete datasheet for Analog Devices LTC6254CMS#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

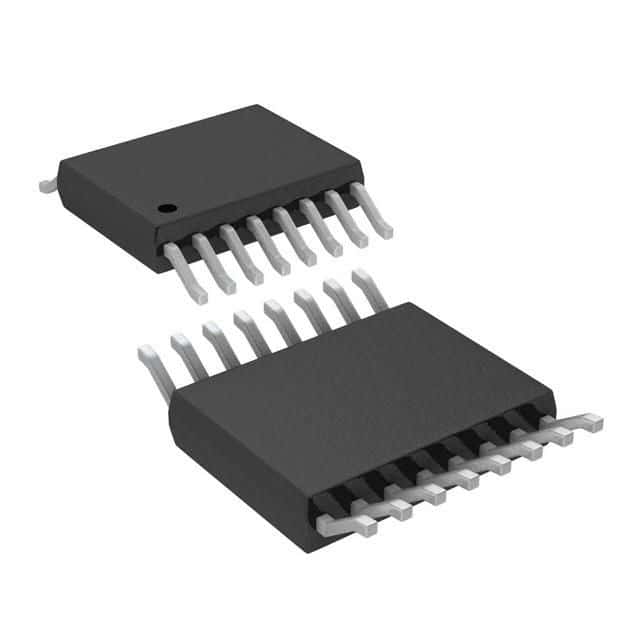

Product Images
