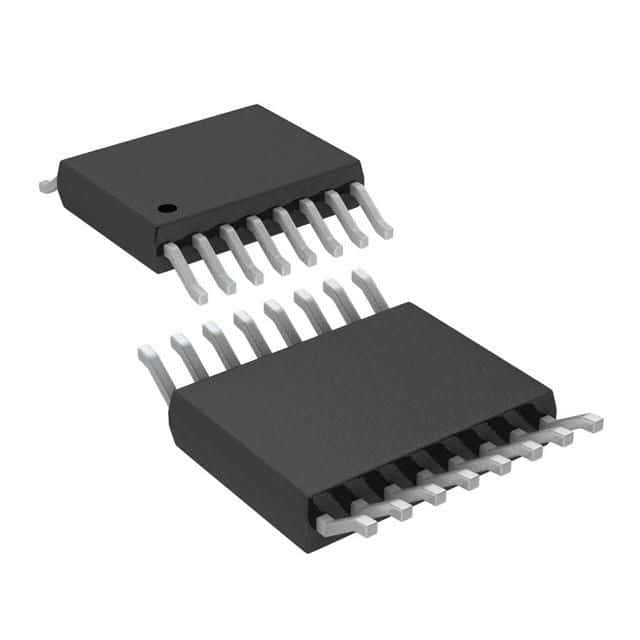

Quad-channel, rail-to-rail output general-purpose operational amplifier featuring a 720MHz gain bandwidth product and 400MHz -3dB bandwidth. This bipolar technology amplifier offers a high slew rate of 280V/µs and 100mA output current per channel. Operating from a single supply of 2.5V to 5.25V or dual supplies from ±1.25V to ±2.625V, it exhibits excellent 85dB CMRR and 68dB PSRR. The device is housed in a 16-lead MSOP package and is RoHS compliant.
PackageMSOP
Quick Jump:
Technical Specifications
Analog Devices LTC6254CMS#TRPBF technical specifications.
General
-3db Bandwidth
400MHz
Amplifier Type
GENERAL PURPOSE
Package/Case
MSOP
Common Mode Rejection Ratio
85dB
Gain Bandwidth Product
720MHz
Input Bias Current
1.4uA
Input Offset Voltage (Vos)
50uV
Max Dual Supply Voltage
2.625V
Min Dual Supply Voltage
1.25V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.25V
Min Supply Voltage
2.5V
Nominal Gain Bandwidth Product
720MHz
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
4.25mA
Output Current per Channel
100mA
Package Quantity
2500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
68dB
RoHS Compliant
Yes
Slew Rate
280V/µs
Technology
BIPOLAR
Voltage Gain
95.56dB
Compliance
RoHS
Compliant
