Analog Devices
LTC6601IUF-2#TRPBF
1-Channel Op-Amp, 28MHz Gain Bandwidth, QFN EP Package, -40°C to 85°C
The LTC6601IUF-2#TRPBF is a single-channel operational amplifier with a nominal gain bandwidth product of 28MHz. It is available in a QFN EP package and is specified to operate over a temperature range of -40°C to 85°C. The device has an input offset voltage of 250uV and is RoHS compliant. It is suitable for use in a variety of applications requiring a high-performance operational amplifier.
PackageQFN EP
Quick Jump:
Technical Specifications
Analog Devices LTC6601IUF-2#TRPBF technical specifications.
General
| Package/Case | QFN EP |
| Input Offset Voltage (Vos) | 250uV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.7V |
| Nominal Gain Bandwidth Product | 28MHz |
| Number of Channels | 1 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Type | Active |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC6601IUF-2#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC6601IUF-2#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

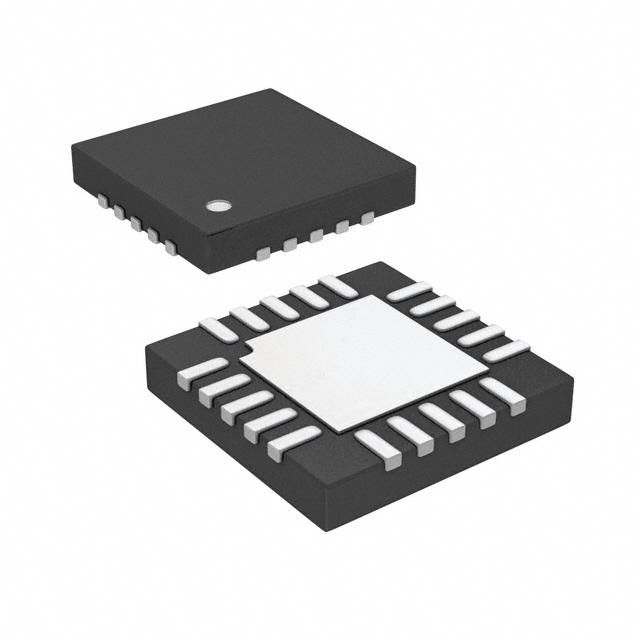

Product Images
