Analog Devices
LTC6655BHLS8-4.096#PBF
4.096V Series Voltage Reference IC, 0.025% Tol, 5mA Out, 8-Pin CLCC, SM
Precision voltage reference IC offering a fixed 4.096V output with a tight 0.025% tolerance. Designed for surface mount applications, this series reference operates across a wide temperature range from -40°C to 125°C. It supports an output current of up to 5mA and features a low operating supply current of 7.5mA. Packaged in a CLCC format, this RoHS compliant component is supplied in trays.
PackageCLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC6655BHLS8-4.096#PBF technical specifications.
General
Package/Case
CLCC
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Min Output Voltage
4.096V
Mount
Surface Mount
Operating Supply Current
7.5mA
Output Current
5mA
Output Type
Fixed
Package Quantity
576
Packaging
Tray
Reach SVHC Compliant
No
Reference Type
Series
Reference Voltage
4.096V
RoHS Compliant
Yes
Tolerance
0.025%
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC6655BHLS8-4.096#PBF Datasheet
Download the complete datasheet for Analog Devices LTC6655BHLS8-4.096#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

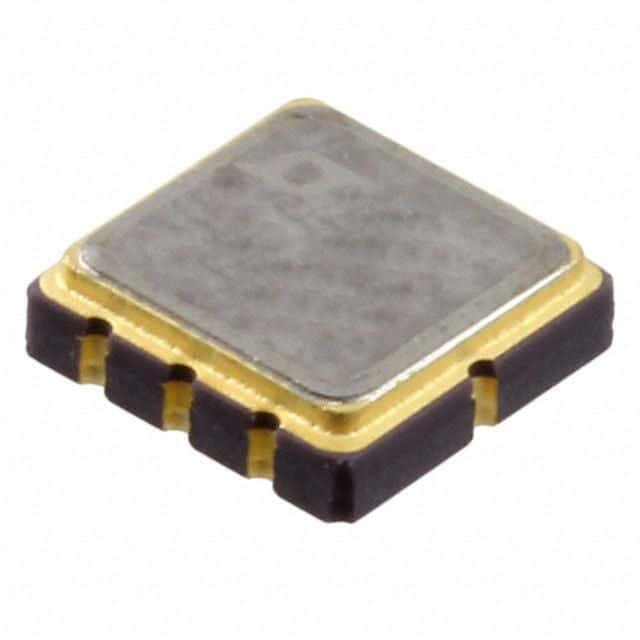

Product Images
