Technical Specifications
Analog Devices LTC6702CDC#TRPBF technical specifications.
General
Package/Case
DFN
Common Mode Rejection Ratio
65dB
Hysteresis
7.2mV
Input Offset Voltage (Vos)
3.5mV
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.5V
Number of Channels
2
Number of Elements
2
Output Type
TTL
Package Quantity
2500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
65dB
Propagation Delay
450ns
Quiescent Current
32uA
RoHS Compliant
Yes
Supply Current
64uA
Technology
CMOS
Type
General Purpose
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC6702CDC#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC6702CDC#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

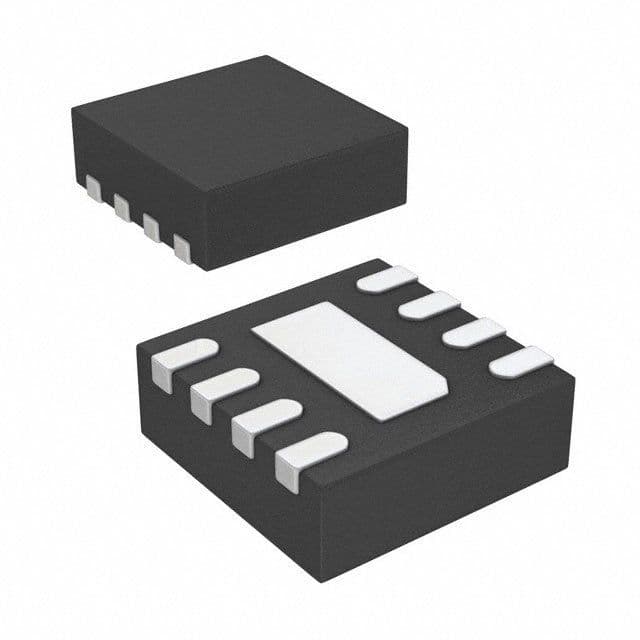

Product Images
