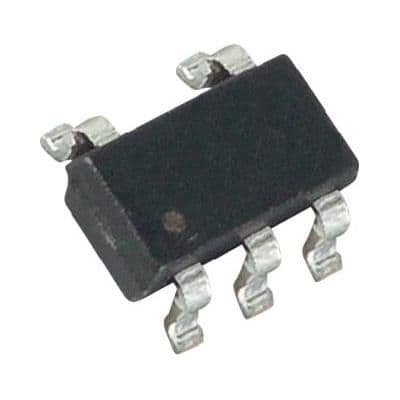

Programmable oscillator IC featuring a 1kHz to 20MHz frequency range and 2.5% frequency tolerance. Surface mountable in a compact TSOT package (2.9mm L x 1.75mm W x 0.9mm H). Operates from a 2.7V to 5.5V supply with a typical 920uA operating current. Suitable for applications within a -40°C to 85°C temperature range. RoHS compliant and lead-free.
Sign in to ask questions about the Analog Devices LTC6900IS5#TRMPBF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices LTC6900IS5#TRMPBF technical specifications.
| Package/Case | TSOT |
| Depth | 1.75mm |
| Frequency | 20MHz |
| Frequency Tolerance | 2.5% |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Operating Supply Current | 920uA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Width | 1.75mm |
| RoHS | Compliant |
