CMOS programmable oscillator with spread spectrum capability, operating from 2.7V to 5.5V. Features a frequency range of 0.005MHz to 20MHz and a typical supply current of 2.5mA. Packaged in a 10-pin MSOP with dimensions of 3mm x 3mm x 0.86mm, suitable for surface mounting. Operating temperature range is -40°C to 85°C. This component is RoHS compliant.
Frequency20MHz
PackageMSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC6902CMS#PBF technical specifications.
General
Package/Case
MSOP
Depth
3mm
Frequency
20MHz
Height
0.86mm
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Operating Supply Current
2.5mA
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC6902CMS#PBF Datasheet
Download the complete datasheet for Analog Devices LTC6902CMS#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

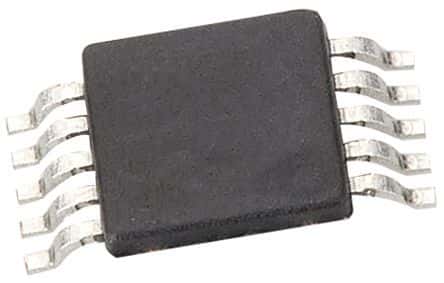

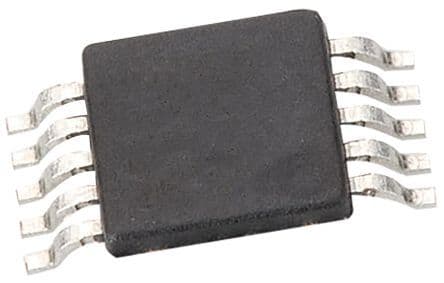

Product Images
