Programmable silicon oscillator IC in a 16-MSOP package. Features a frequency output of 6.67MHz, operating supply voltage range of 2.7V to 5.5V, and a maximum operating temperature of 70°C. Surface mountable with a depth of 3mm. RoHS compliant with an operating supply current of 2.4mA.
Frequency6.67MHz
PackageMSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC6909CMS#PBF technical specifications.
General
| Package/Case | MSOP |
| Depth | 3mm |
| Frequency | 6.67MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Operating Supply Current | 2.4mA |
| Package Quantity | 37 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC6909CMS#PBF Datasheet
Download the complete datasheet for Analog Devices LTC6909CMS#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

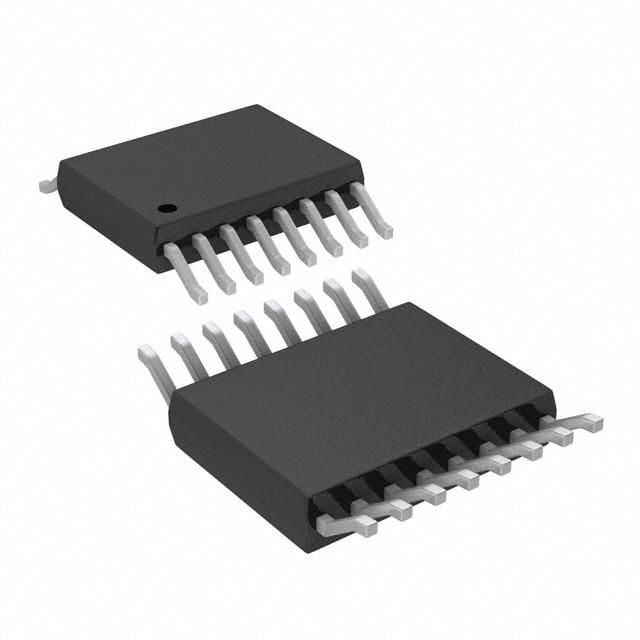

Product Images
