Dual-channel, rail-to-rail output operational amplifier with a 33MHz gain bandwidth product and 26V/µs slew rate. Features a 125µV input offset voltage and 10MΩ input resistance. Operates from a 1.35V to 5.25V dual supply or 2.7V to 10.5V single supply. Offers 35mA output current per channel, 55dB CMRR, and 60dB PSRR. Surface mount DFN package, lead-free and RoHS compliant.
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC6912CDE-1#PBF technical specifications.
General
Package/Case
DFN
Common Mode Rejection Ratio
55dB
Gain Bandwidth Product
33MHz
Input Offset Voltage (Vos)
125uV
Input Resistance
10MR
Lead Free
Lead Free
Max Dual Supply Voltage
5.25V
Min Dual Supply Voltage
1.35V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
10.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
2.25mA
Output Current per Channel
35mA
Package Quantity
91
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
60dB
RoHS Compliant
Yes
Slew Rate
26V/µs
Unity Gain Bandwidth Product
33MHz
Voltage Gain
39.85dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC6912CDE-1#PBF Datasheet
Download the complete datasheet for Analog Devices LTC6912CDE-1#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

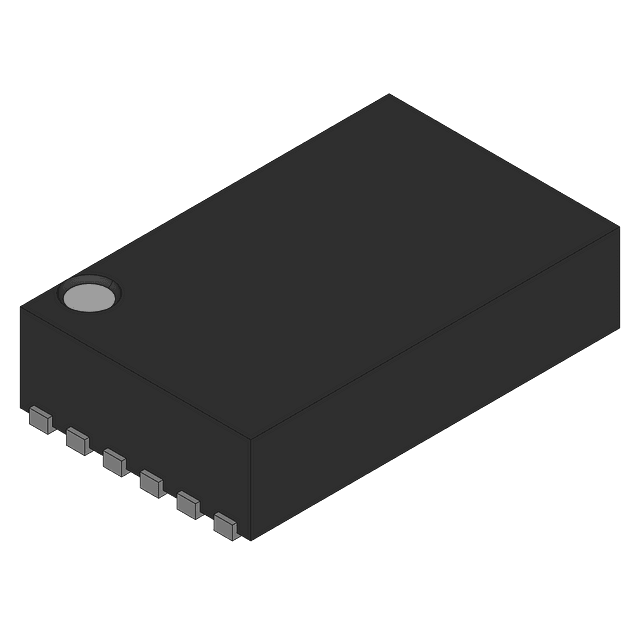

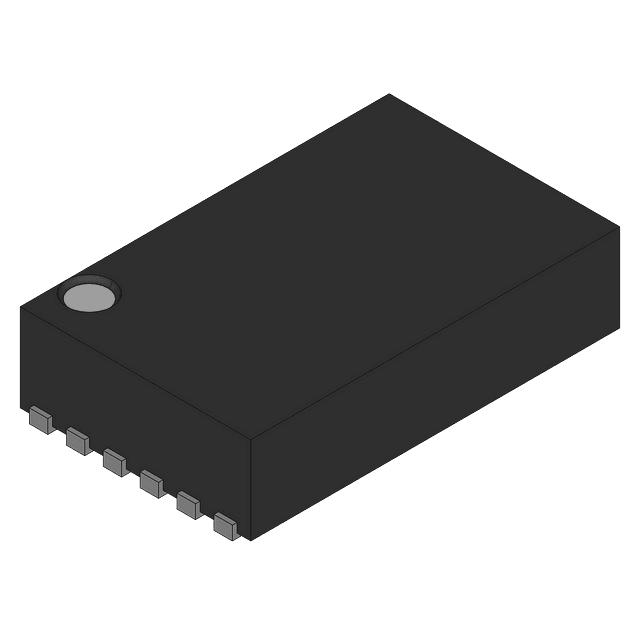

Product Images
