Clock buffer and driver IC with 2 outputs, designed for surface mount applications. Features a 1:2 fanout ratio and operates from a 3.15V to 3.45V supply range, with a nominal 3.3V operating voltage. Offers a propagation delay of 4.4ns and is housed in an MSOP package. Suitable for operation across a wide temperature range of -40°C to 125°C. RoHS compliant.
PackageMSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC6957HMS-2#PBF technical specifications.
General
| Package/Case | MSOP |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.45V |
| Min Supply Voltage | 3.15V |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Operating Supply Voltage | 3.3V |
| Propagation Delay | 4.4ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC6957HMS-2#PBF Datasheet
Download the complete datasheet for Analog Devices LTC6957HMS-2#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

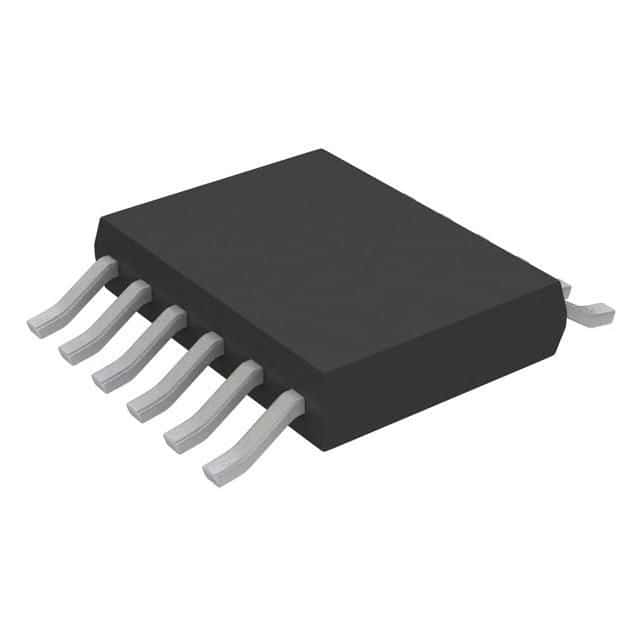

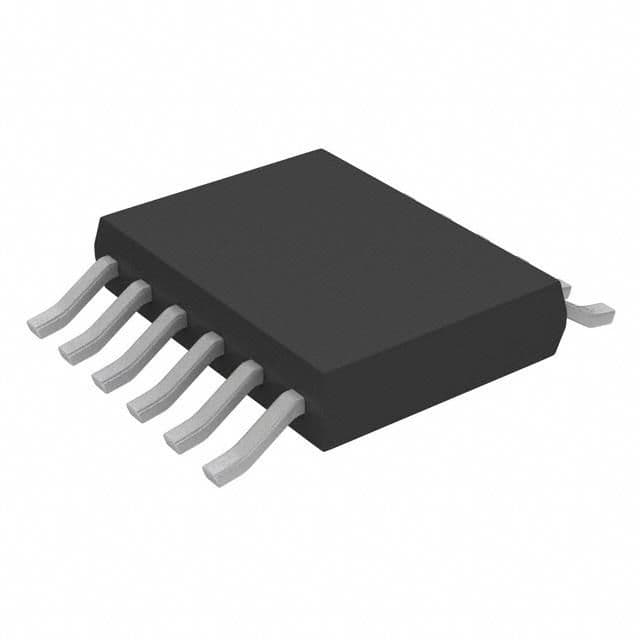

Product Images
