RS-485/RS-422 transceiver module featuring a 20Mbps data rate and a single driver and receiver. This surface mount component operates from a 3V to 3.6V supply voltage with a typical 3.3V operating voltage and 25mA supply current. Encased in a 32BGA package measuring 15mm x 11.25mm x 3.42mm, it supports a 0°C to 70°C operating temperature range.
PackageBGA
Current25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTM2881CY-3#PBF technical specifications.
General
Package/Case
BGA
Data Rate
20Mbps
Height
3.42mm
Interface
RS-422, RS-485
Length
15mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Voltage
3.3V
Package Quantity
119
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
µModule®
Supply Current
25mA
Width
11.25mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTM2881CY-3#PBF Datasheet
Download the complete datasheet for Analog Devices LTM2881CY-3#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

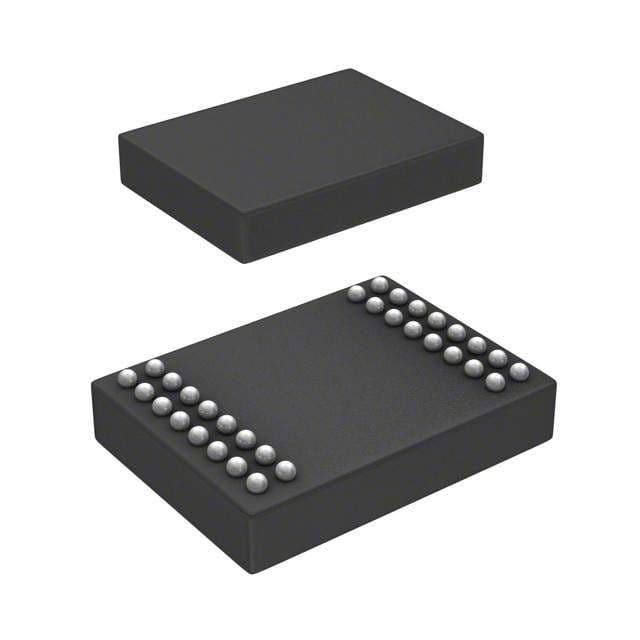

Product Images
