Isolated RS422/RS485 bus transceiver, featuring a 20Mbps data rate and 2.5kV isolation. This integrated circuit offers a 32-ball BGA package for surface mounting, operating from a 3V to 3.6V supply with a typical 3.3V operating voltage. It includes one transmitter, one receiver, and one transceiver, with a maximum supply current of 25mA. Designed for wide temperature operation from -55°C to 105°C, this lead-free and RoHS-compliant component is supplied in trays of 119 units.
PackageBGA
Current25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTM2881MPY-3#PBF technical specifications.
General
| Package/Case | BGA |
| Data Rate | 20Mbps |
| Height | 3.62mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 119 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | µModule® |
| Supply Current | 25mA |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTM2881MPY-3#PBF Datasheet
Download the complete datasheet for Analog Devices LTM2881MPY-3#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

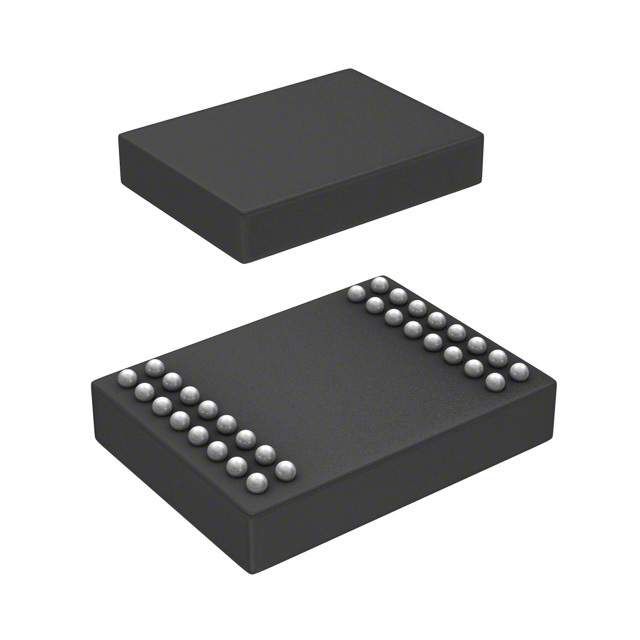

Product Images
